View larger
Images are for illustrative purposes only. Please refer to data sheet for details

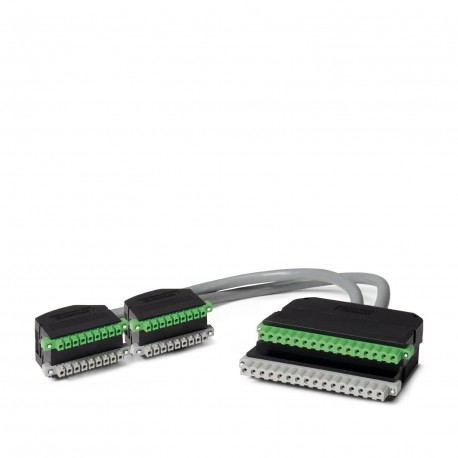

CAB-MSTB32/2XMC9/18/ 3,0M/C3/S 2908407 PHOENIX CONTACT Interface cable
CAB-MSTB32/2XMC9/18/ 3,0M/C3/S
2908407
PHOENIX CONTACT
1 Pcs.
Interface cable
16-channel VIP cable for use with Honeywell C300 Universal I/O Module, 18 AWG, 3.0 m length
Cables > PLC connection cable
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2908407 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626685434 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85444290 |
| Country of origin | US (United States) |
General
| Nominal voltage UN | < 30 V AC/DC |
|---|---|
| Max. current carrying capacity per path | 2 A |
| Length of cable | 3 m |
| Single wire, cross section | 0.75 mm² |
| Single wire, cross section [AWG] | 18 |
| Conductor construction: Number of litz wires: | 16 |
| Single wire, material | Cu tin-plated |
| External diameter | 11.8 mm |
| Shielding | yes |
| Tinned copper-braided shield, approx. 85% covering |
Environmental conditions
| Ambient temperature (operation) | -40 °C ... 90 °C (static) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 90 °C |
| Flame resistance | IEC 60332-1 |
Connector 1
| Connection name | Field level |
|---|---|
| Connection method | pluggable |
| Number of connections | 2 |
| Number of positions | 18 |
| Pitch | 3.81 mm |
Connector 2
| Connection name | Controller level |
|---|---|
| Connection method | pluggable |
| Number of connections | 1 |
| Number of positions | 32 |
| Pitch | 5.08 mm |
Classifications
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 3 m |
| Suitable for input board PLC (EF008271) | No |
| Suitable for output card PLC (EF008272) | No |
| Suitable for digital signals (EF008273) | No |
| Suitable for analogue signals (EF008274) | No |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Number of poles (EF001391) | 18 |
