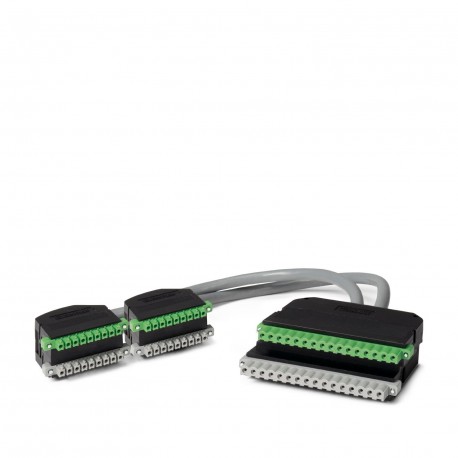

CAB-MSTB32/2XMC9/18/ 1,0M/C3/S 2908405 PHOENIX CONTACT Interface cable
CAB-MSTB32/2XMC9/18/ 1,0M/C3/S
2908405
PHOENIX CONTACT
1 Pcs.
Interface cable
16-channel VIP cable for use with Honeywell C300 Universal I/O Module, 18 AWG, 1.0 m length
VIP 16-channel cable for use with Honeywell C300 universal I/O, 18 AWG, 1.0 m long
Cables > PLC connection cable
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | System cable |
| Product family | VIP I/O-Marshalling |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 90 °C (static) |
| Ambient temperature (storage/transport) | -40 °C ... 90 °C |
Electrical properties
| Operating voltage (AC/DC) | ≤ 30 V AC/DC |
| Current (Per path) | ≤ 2 A |
Cable/line
| Cable length | 1 m |
| Number of positions | 16 |
| Shielded | yes |
| Conductor type | Assembled shielded round cable |
| Conductor structure signal line | 16x |
| AWG signal line | 18 |
| Conductor cross section | 16x 0.75 mm² |
| External cable diameter | 11.80 mm |
| Conductor material | Tin-plated Cu litz wires |
| Halogen-free | yes |
| Flame resistance | IEC 60332-1 |
| Cable type | Splitting cable for two modules |
Connection data
| Field level | |
| Connection method | pluggable |
| Number of connections | 2 |
| Number of positions | 18 |
| Pitch | 3.81 mm |
| Controller level | |
| Connection method | pluggable |
| Number of connections | 1 |
| Number of positions | 32 |
| Pitch | 5.08 mm |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 1 m |
| Suitable for input board PLC (EF008271) | No |
| Suitable for output card PLC (EF008272) | No |
| Suitable for digital signals (EF008273) | No |
| Suitable for analogue signals (EF008274) | No |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of electrical connection, box-sided (EF005524) | Other |
| Number of poles (EF001391) | 18 |
