View larger
Images are for illustrative purposes only. Please refer to data sheet for details

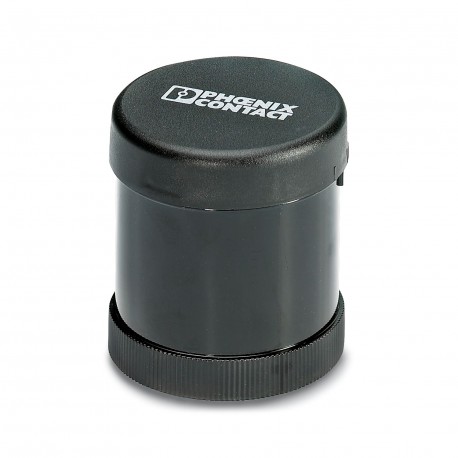

PSD-S AE BM2-1 85DB 2700136 PHOENIX CONTACT Acoustic element
PSD-S AE BM2-1 85DB
2700136
PHOENIX CONTACT
1 Pcs.
Acoustic element
Buzzer element, steady/pulse sound, 24VAC/DC, max.85dB(A), black
Automation > Acoustic module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2700136 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 502 (C-6-2017) |
| GTIN | 4046356491280 |
| Weight per Piece (excluding packing) | 69.000 g |
| Custom tariff number | 85318070 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Degree of protection | IP65, when installed |
Electrical data
| Input voltage | 24 V AC/DC ±10 % |
|---|---|
| Nominal input voltage range | 21.6 V AC/DC ... 26.4 V AC/DC |
| Maximum inrush current | max. 200 mA |
| Current consumption | 25 mA |
| Service life, electrical | min. 5,000 h |
| Operating time | 100 % |
| Type of acoustic signal | Continuous/pulse tone |
| Signal frequency | approx. 1 Hz |
| Tone frequency | approx. 1.75 kHz |
| Volume | 85 dB(A) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027240208eCl@ss 4.127240208eCl@ss 5.027371214eCl@ss 5.127371200eCl@ss 6.027371200eCl@ss 7.027371214eCl@ss 8.027371214eCl@ss 9.027371214
| Feature Name | Feature Value |
|---|---|
| Outer diameter (EF000015) | 70 mm |
| Colour (EF000007) | Black |
| Operating voltage DC (EF008208) | 21.6 V |
| Voltage type (EF000187) | AC/DC |
| Degree of protection (IP) (EF005474) | IP65 |
| Loudness (EF000144) | 85 dB |
