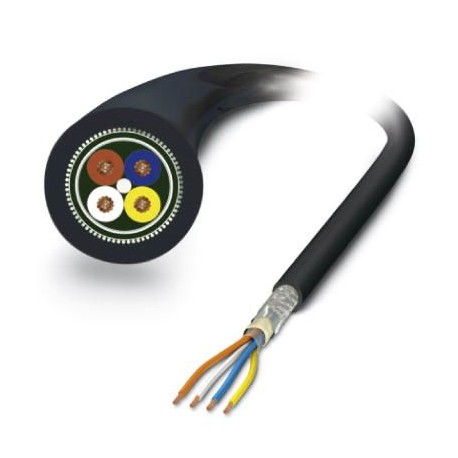

PHOENIX CONTACT VS-OE-OE-936-100,0 VS-OE-OE-936-100,0 1416570 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-OE-OE-936-100,0 1416570 PHOENIX CONTACT Network cable

VS-OE-OE-936-100,0

1416570

PHOENIX CONTACT

1 Pcs.

Network cable Network cable, PROFINET CAT5 (100 MBit/s), 4-pole halogen-free, shielded, free cable end, to free cable end, cable length: 100 m, For railway applications

Cables > Data and communication cable
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1416570
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 240 (PC-2009)
GTIN4046356479264
Weight per Piece (excluding packing)7,527.000 g
Custom tariff number85444290
Country of originDE (Germany)

Dimensions

Length of cable100 m

General data

Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801:2002), 100 Mbps

Cable

Cable typePROFINET railway applications
Cable type (abbreviation)936
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.95 mm
Wire colorswhite-blue, orange-yellow
Overall twistStar quad
ShieldingPlastic-coated aluminum foil, tinned copper braided shield
Optical shield covering100 %
External sheath, colorblack RAL 9005
Outer sheath thickness≥ 0.8 mm
External cable diameter D7.25 mm ±0,3 mm
Minimum bending radius, fixed installation6 x D
Minimum bending radius, flexible installation10 x D
Cable weight81 g/m
Outer sheath, materialPE-X
Material conductor insulationPE-X
Conductor materialsilver-plated Cu litz wires
Conductor resistance≤ 54.4 Ω/km
Working capacitance≤ 65 pF (core-core)
≤ 100 pF (core-shield)
Wave impedance100 Ω ±5 Ω (f = 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
67 dB (at 10 MHz)
60 dB (at 31.5 МHz)
56 dB (at 62.5 МHz)
53 dB (at 100 MHz)
Remote crosstalk attenuation (FEXT)80 dB (with 1 MHz)
70 dB (at 4 МHz)
65 dB (at 10 MHz)
58 dB (at 31.5 МHz)
59 dB (at 62.5 МHz)
67 dB (at 100 MHz)
Attenuation2 dB (with 1 MHz)
4 dB (at 4 МHz)
6.5 dB (at 10 MHz)
10.5 dB (at 31.5 МHz)
14 dB (at 62.5 МHz)
18 dB (at 100 MHz)
Return loss (RL)35 dB (at 4 МHz)
35 dB (at 10 MHz)
35 dB (at 31.5 МHz)
33 dB (at 62.5 МHz)
33 dB (at 100 MHz)
Signal speed66 c
Shield attenuation40 dB (30 MHz ≤ f ≤ 100 MHz)
Coupling resistance200.00 mΩ/m (f ≤ 30 MHz)
Nominal voltage, cable300 V AC
Test voltage, cable2000 V AC (50 Hz, 5 minutes)
Fire protection in rail vehiclesBS 6853 (Category Ia, Ib, II)
GM/RT 2130 (Category Ia, Ib, II)
EN 45545 (Risk level HL1 - HL3)
DIN 5510 (Fire protection level 1, 2, 3, 4)
NF F16-101 (Category A1, A2, B)
NF F16-101 (Class C/F0)
NFPA 130
UNI CEI 11170 (Risk level LR1 - LR4)
Flame resistanceEN 60332-1-2
EN 50266
EN 60332-3-25
NF C32-070, 2.1
NF C32-070, 2.2
UL 1685, 12 (FT4)
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Halogen-freeAccording to EN 50267-2-1
Resistance to oilaccording to IRM 902, 72 h at 100 °C
Other resistanceResistance to fuels according to IRM 903, 168 h at 70 °C
Concentration of fumesBS 6853 D.8.7
EN 61034-2
UL 1685, 12 (FT4)
Fume corrosivenessEN 50267-2-2
Fume toxicityBS 6853 B.1
EN 50305, 9.2
Ambient temperature (operation)-50 °C ... 90 °C (cable, fixed installation)
-40 °C ... 90 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1416570 Cable (EC003249)
Feature Name Feature Value
Conductor surface (EF010804) Other
Diameter conductor (EF001621) 1.95 mm
Nominal cross section conductor (EF000060) 0.34 mm²
Conductor category (EF001632) Class 2 = stranded
Number of cores (EF001792) 4
Core identification (EF000067) Other
Screen over stranding element (EF001623) Foil + braiding
Longitudinal water blocking cable (EF011011) No
Radial water blocking cable (EF011012) No
Suitable for underground installation (EF003689) No
Protective sheath (EF001691) None
Material outer sheath (EF001625) Other
Specification material outer sheath (EF011806) Other
Colour outer sheath (EF001618) Other
Low smoke according to EN IEC 61034-2 (EF003799) No
Oil resistant according to EN IEC 60811-404 (EF009770) No
Outer diameter approx. (EF003921) 7.25 mm
Min. permitted bending radius, moving application/free movement (EF011802) 73 mm
Min. permitted bending radius, stationary application/permanent installation (EF011803) 44 mm
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Category (EF001619) Other
