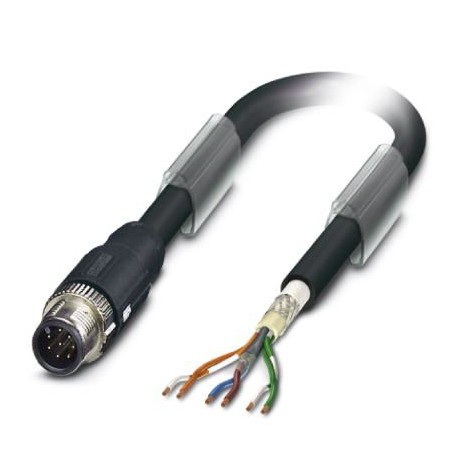

SAC-6P-MS/15,0-970 SCO 1428526 PHOENIX CONTACT Bus system cable
SAC-6P-MS/15,0-970 SCO
1428526
PHOENIX CONTACT
1 Pcs.
Bus system cable
Bus system cable, VARAN (100 MBit/s), 6-pole, shielded, M12 straight connector, coding: A SPEEDCON, to free cable end, cable length: 15 m
Cables > Data cable
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1428526 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 324 (PC-2011) |
| GTIN | 4046356322805 |
| Weight per Piece (excluding packing) | 1,220.200 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 6 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | VARAN, 100 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (Plug) |
|---|---|
| 4 (Plug) | |
| 6 (Plug) | BU (Power) | |
| 7 (Plug) | BN (Power) | |
| 5 (Plug) | GN/WH (RD+) | |
| 8 (Plug) | GN (RD-) | |
| 2 (Plug) | OG/WH (TD+) | |
| 3 (Plug) | OG (TD-) |
Cable
| Cable type | VARAN |
|---|---|
| Cable type (abbreviation) | 970 |
| Cable abbreviation | Li9YD12Y |
| Cable structure | 1x2xAWG22/19 + 1x4xAWG24/19 |
| Conductor cross section | 4x 0.25 mm² (Signal line) |
| 2x 0.38 mm² (Power supply) | |
| AWG signal line | 24 |
| AWG power supply | 22 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 19x 0.16 mm |
| Core diameter including insulation | 1.35 mm (Signal line) |
| 1.5 mm (Power supply) | |
| Wire colors | Brown, blue, white/orange, white/green, green, orange |
| Type of pair shielding | Tinned copper braided shield, 95 % covering |
| Overall twist | 1 star quad and 2 wires with 2 fillers |
| Shielding | Tinned copper-braided shield, approx. 85% covering |
| External sheath, color | black RAL 9005 |
| External cable diameter D | 7.8 mm ±0.2 mm |
| Smallest bending radius, fixed installation | ≥ 93 mm |
| Smallest bending radius, movable installation | ≥ 93 mm |
| Number of bending cycles | 3000000 |
| Bending radius | 93 mm |
| Traversing path | 2 m |
| Traversing rate | 1 m/s |
| Acceleration | 2 m/s² |
| Cable weight | 81 kg/km |
| Outer sheath, material | SANTOPRENE halogen-free |
| Material, inner sheath | TPE |
| Material, filler | Yarn |
| Material conductor insulation | PP |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | 5 GΩ*km (Data cable) |
| Conductor resistance | 77 Ω/m (Data cable) |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Working capacitance | 50 nF (Data cable) |
| Wave impedance | 100 Ω ±15 % |
| Nominal voltage, cable | 125 V (Data cable) |
| 48 V (Power supply) | |
| Test voltage, cable | 2000 V (Power supply) |
| max. 700 V AC (Data cable) | |
| Halogen-free | in accordance with DIN EN 50267-2-1 |
| Ambient temperature (operation) | -20 °C ... 80 °C (Cable) |
