SAC-6P-10,0-970/FR SCO 1428636 PHOENIX CONTACT Bus system cable

SAC-6P-10,0-970/FR SCO

1428636

PHOENIX CONTACT

1 Pcs.

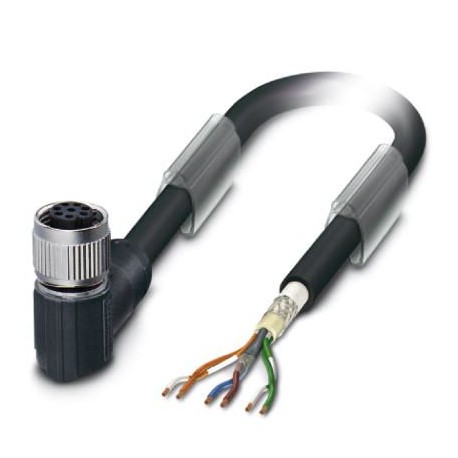

Bus system cable Bus system cable, VARAN (100 MBit/s), 6-pole, shielded, free cable end, to Elbowed Female M12, encoding: A SPEEDCON, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1428636
Packing unit1 pc
Catalog pagePage 324 (PC-2011)
GTIN4046356322911
Weight per Piece (excluding packing)781.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable10 m
Stripping length of the free conductor end50 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67

General

Rated current at 40°C2 A
Rated voltage30 V AC
30 V DC
Number of positions6
Color handle areablack
Insulation resistance≥ 100 MΩ
CodingA - standard
Signal type/categoryVARAN, 100 Mbps
Status displayNo
Overvoltage categoryII
Degree of pollution3
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94HB
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Pin assignment

Contact | Color (signal designation) | Contact (optional)1 (Socket)
4 (Socket)
6 (Socket) | BU (Power)
7 (Socket) | BN (Power)
5 (Socket) | GN/WH (RD+)
8 (Socket) | GN (RD-)
2 (Socket) | OG/WH (TD+)
3 (Socket) | OG (TD-)

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typeVARAN
Cable type (abbreviation)970
Cable abbreviationLi9YD12Y
Cable structure1x2xAWG22/19 + 1x4xAWG24/19
Conductor cross section4x 0.25 mm² (Signal line)
2x 0.38 mm² (Power supply)
AWG signal line24
AWG power supply22
Conductor structure signal line19x 0.13 mm
Conductor structure, voltage supply19x 0.16 mm
Core diameter including insulation1.35 mm (Signal line)
1.5 mm (Power supply)
Wire colorsBrown, blue, white/orange, white/green, green, orange
Type of pair shieldingTinned copper braided shield, 95 % covering
Overall twist1 star quad and 2 wires with 2 fillers
ShieldingTinned copper-braided shield, approx. 85% covering
External sheath, colorblack RAL 9005
External cable diameter D7.8 mm ±0.2 mm
Smallest bending radius, fixed installation≥ 93 mm
Smallest bending radius, movable installation≥ 93 mm
Number of bending cycles3000000
Bending radius93 mm
Traversing path2 m
Traversing rate1 m/s
Acceleration2 m/s²
Cable weight81 kg/km
Outer sheath, materialSANTOPRENE halogen-free
Material, inner sheathTPE
Material, fillerYarn
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance5 GΩ*km (Data cable)
Conductor resistance77 Ω/m (Data cable)
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Working capacitance50 nF (Data cable)
Wave impedance100 Ω ±15 %
Nominal voltage, cable125 V (Data cable)
48 V (Power supply)
Test voltage, cable2000 V (Power supply)
max. 700 V AC (Data cable)
Halogen-freein accordance with DIN EN 50267-2-1
Ambient temperature (operation)-20 °C ... 80 °C (Cable)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1428636 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 6
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -20 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) IP65
