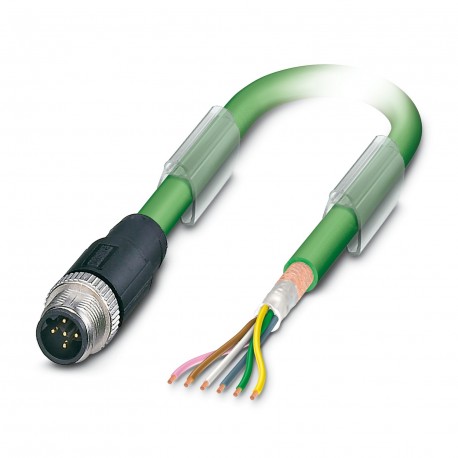

PHOENIX CONTACT SAC-5P-M12MSB/10,0-900 SAC-5P-M12MSB/10,0-900 1507081 PHOENIX CONTACT Bus system cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-M12MSB/10,0-900 1507081 PHOENIX CONTACT Bus system cable

SAC-5P-M12MSB/10,0-900

1507081

PHOENIX CONTACT

1 Pcs.

Bus system cable Bus system cable, INTERBUS (16 MBit/s), 5-pole halogen-free, shielded, M12 straight connector, encoding: B, to free cable end, cable length: 10 m Bus system cable, INTERBUS (16 Mbps), 5-position, PUR halogen-free, may green RAL 6017, shielded, Plug straight M12, coding: B, on free cable end, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFurther products with variable cable type and variable cable length can be found in the accessories section
Product properties
Product typeData cable preassembled
ApplicationStandard
Sensor typeINTERBUS
Number of positions5
No. of cable outlets1
Shieldedyes
CodingB
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Interfaces
Bus systemINTERBUS
Signal type/categoryINTERBUS, 16 Mbps
Signaling
Status displayno
Status display presentNo
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Transmission mediumCopper
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Material specifications
Flammability rating according to UL 94V0
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Connection data
Pin assignment
Contact Color (signal designation) Contact (optional)1 (Plug) YE (DO)
2 (Plug) GN (DO)
3 (Plug) GY (DI)
4 (Plug) PK (DI)
5 (Plug) BN (GND)
Connector
Connection 1
TypePlug straight M12
Number of positions5
Coding typeB (inverse)
Connection 2
Typefree cable end
Cable/line
Cable length10 m
INTERBUS [900]
Dimensional drawingygwyytzvdn.jpg
Cable weight70 kg/km
Number of positions6
Shieldedyes
Cable typeINTERBUS [900]
Conductor structure3 x 2 x 0.22 mm²
Signal speed0.66 c
Conductor structure signal line32x 0.10 mm
AWG signal line24
Conductor cross section3x 2x 0.22 mm²
External cable diameter8.00 mm
Outer sheath, materialPUR
External sheath, colormay green RAL 6017
Conductor materialBare Cu litz wires
Material wire insulationPE
Single wire, colorgreen-yellow, white-brown, gray-pink
Twisted pairs2 cores to the pair
Overall twist3 pairs to the core
Insulation resistance≥ 5 GΩ*km
Coupling resistance< 250.00 mΩ/m (at 30 MHz)
Loop resistance≤ 159.80 Ω/km
Wave impedance120 Ω ±20 % (at 64 kHz)
100 Ω ±15 % (with 1 MHz)
Cable capacity≤ 60 nF/km (At 800 Hz)
Nominal voltage, cable250 V (Peak value, not for high-power applications)
Test voltage Core/Core1500 Vrms
Test voltage Core/Shield1000.00 Vrms
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation15 x D
Smallest bending radius, fixed installation60 mm
Smallest bending radius, movable installation120 mm
Dynamic load capacity (bending)Max. bending cycles: 5000000, Bending radius: 120 mm, Traversing path: 10 m, Traversing rate: 1.6 m/s, Acceleration: 3.2 m/s²
Near end crosstalk attenuation (NEXT)≥ 61 dB (at 772 kHz)
≥ 59 dB (with 1 MHz)
≥ 55 dB (at 2 МHz)
≥ 50 dB (at 4 МHz)
≥ 46 dB (at 8 МHz)
≥ 44 dB (at 10 MHz)
≥ 41 dB (at 16 MHz)
≥ 40 dB (at 20 МHz)
Shield attenuation≤ 15 dB/km (at 256 kHz)
≤ 24 dB/km (at 772 kHz)
≤ 27 dB/km (with 1 MHz)
≤ 52 dB/km (at 4 МHz)
≤ 84 dB/km (at 10 MHz)
≤ 112 dB/km (at 16 MHz)
≤ 119 dB/km (at 20 МHz)
Flame resistanceaccording to VDE 0472, Part 4, test type B
according to IEC 60332-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 70 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)

ETIM for 1507081 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
