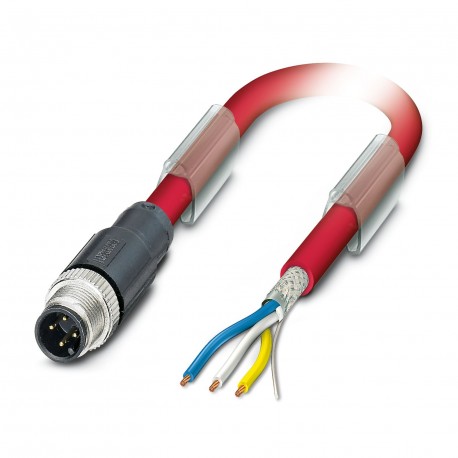

SAC-4P-M12MS/ 2,0-990 1558328 PHOENIX CONTACT Bus system cable
SAC-4P-M12MS/ 2,0-990
1558328
PHOENIX CONTACT
50 Pcs.
Bus system cable
Bus system cable, CC-Link (10 MBit/s), 4-pole, shielded, Straight M12 connector, encoding: A, to free cable end, cable length: 2 m
Bus system cable, DC Link (10 Mbit/s), 4-pin, PVC, red, shielded, straight male M12, coding: A, on free conductor end, cable length: 2 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1558328 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 401 (PC-2011) |
| GTIN | 4046356293655 |
| Weight per Piece (excluding packing) | 164.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 90 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 4 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | CC link, 10 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (Plug) | SR (shield) |
|---|---|
| 2 (Plug) | WH (DB) | |
| 3 (Plug) | YE (DG) | |
| 4 (Plug) | BU (DA) |
Cable
| Cable type | CC-Link |
|---|---|
| Cable type (abbreviation) | 990 |
| Cable structure | 3xAWG20/7 + 1xAWG22/19 (filler litz wire) |
| Conductor cross section | 0.5 mm² |
| AWG signal line | 20 |
| Conductor structure signal line | 7x 0.28 mm |
| Thickness, insulation | 0.89 mm (Outer cable sheath) |
| Wire colors | white, yellow, blue |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Optical shield covering | 78 % |
| External sheath, color | red |
| External cable diameter D | 7.7 mm |
| Smallest bending radius, fixed installation | 77 mm |
| Cable weight | 78.8 kg/km |
| Outer sheath, material | PVC |
| Material conductor insulation | foamed PE, with high density |
| Conductor material | Bare Cu litz wires |
| Conductor resistance | 31.2 Ω/km |
| Working capacitance | 61 pF |
| Wave impedance | 110 Ω |
| Nominal voltage, cable | 300 V |
| Ambient temperature (operation) | -30 °C ... 60 °C (cable, fixed installation) |
| -5 °C ... 60 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Cable length (EF000536) | 2 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Red |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -30 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -5 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP65 |
