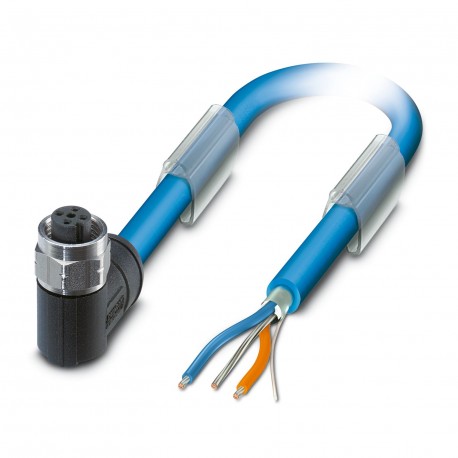

PHOENIX CONTACT SAC-3P-20,0-961/M12FR VA SAC-3P-20,0-961/M12FR VA 1419091 PHOENIX CONTACT Bus system cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-3P-20,0-961/M12FR VA 1419091 PHOENIX CONTACT Bus system cable

SAC-3P-20,0-961/M12FR VA

1419091

PHOENIX CONTACT

1 Pcs.

Bus system cable Bus system cable, PROFIBUS PA (31.25 kBit/s), 3-poles, shielded, free cable end, to Female angled M12, coding: A, cable length: 20 m, for Ex zone with stainless steel knurling. Bus system cable, PROFIBUS PA (31.25 kbps), 3-position, PVC, blue RAL 5015, shielded, free cable end, on Socket angled M12, coding: A, cable length: 20 m, For Ex area with high-grade steel knurl

Cables > Data cable
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor applications in circuits of intrinsic safety protection type "i". Electrical values following EN 60079-14.
Product properties
Product typeData cable preassembled
ApplicationProcess technology
Sensor typePROFIBUS PA
Number of positions3
No. of cable outlets1
Shieldedyes
CodingB
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Interfaces
Bus systemPROFIBUS PA
Signal type/categoryPROFIBUS PA, 31.25 kbps
Signaling
Status displayno
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Transmission mediumCopper
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Connection data
Pin assignment
Contact Color (signal designation) Contact (optional)1 (Socket) OG (DATA+)
3 (Socket) BU (DATA-)
4 (Socket) SR (shield)
Connector
Connection 1
Typefree cable end
Connection 2
Typefree cable end
Cable/line
Cable length20 m
Fieldbus FOUNDATION/PROFIBUS PA, blue [961]
Dimensional drawingxjppmfdkwo.jpg
Cable weight56.552 kg/km
Number of positions2
Shieldedyes
Cable typeFieldbus FOUNDATION/PROFIBUS PA, blue [961]
Conductor structure2xAWG18/7 + 1xAWG20/7
Signal speed0.66 c
Conductor structure signal line7x 0.40 mm
AWG signal line18
Conductor cross section2x 0.75 mm² (Signal line)
1x 0.5 mm² (Drain wire)
Wire diameter incl. insulation2.24 mm ±0.05 mm
External cable diameter7.50 mm ±0.25 mm
Outer sheath, materialPVC
External sheath, colorblue RAL 5015
Conductor materialTin-plated Cu litz wires
Material wire insulationPO (Signal line)
Single wire, colorblue, orange
Thickness, insulation0.50 mm
Thickness, outer sheath1.00 mm
Twisted pairs2 cores to the pair
Overall twistOne pair with one drain wire and fillers for core
Optical shield covering100 %
Max. conductor resistance≤ 19.35 Ω/km (Signal line)
26 Ω/km (shield)
Cable capacity147 pF/m (at 1 kHz, core/shield)
≤ 3.94 pF/m (capacitance unbalance)
Working capacitance78 nF (at 1 kHz)
Cable impedance100 Ω ±20 % (At 31.25 kHz)
Nominal voltage, cable300 V
Smallest bending radius, fixed installation75 mm
Tensile strength260 N
Shield attenuation3.00 dB/km (at 39 kHz)
Flame resistanceUL 1685 (CSA FT 4)
UL 1685 (vertical tray)
UL 1666 (riser)
Special propertiesUL standards PLTC-ER and ITC
Ambient temperature (operation)-40 °C ... 105 °C (cable, fixed installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
IP69K
