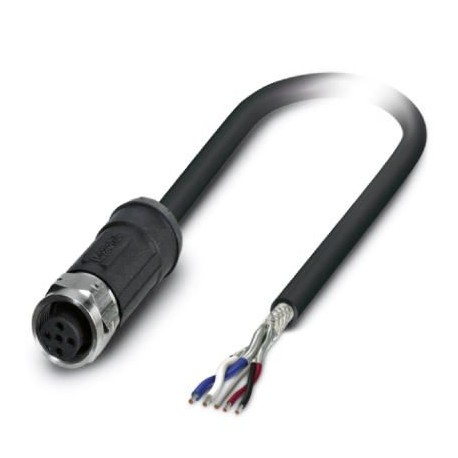

PHOENIX CONTACT SAC-5P-5,0-92X/M12FS SH OD SAC-5P- 5,0-92X/M12FS SH OD 1410494 PHOENIX CONTACT Bus system cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P- 5,0-92X/M12FS SH OD 1410494 PHOENIX CONTACT Bus system cable

SAC-5P-5,0-92X/M12FS SH OD

1410494

PHOENIX CONTACT

1 Pcs.

Bus system cable Bus System Cable, CANopen®, DeviceNet™, 5-pole halogen-free, screened, free cable end, to Straight female M12, coding: A, cable length: 5 m, for outdoor applications, with stainless steel knurling

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1410494
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 187 (NTK-2014)
GTIN4046356899413
Weight per Piece (excluding packing)360.000 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable5 m

Ambient conditions

Ambient temperature (operation)-40 °C ... 105 °C (Plug / socket)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4))
Degree of protectionIP65
IP67
IP68
IP69K

General

Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions5
Insulation resistance≥ 100 MΩ
CodingA - standard
Standards/regulationsM12 connector IEC 61076-2-101
Signal type/categoryCANopen®
DeviceNet™
Status displayNo
Protective circuit/componentunwired
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Flammability rating according to UL 94V0
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPP
Material of grip bodyPP
Material, knurlsStainless steel
Sealing materialFPM

Pin assignment

Contact | Color (signal designation) | Contact (optional)1 (Socket) | SR (shield)
2 (Socket) | RD (V+)
3 (Socket) | BK (V-)
4 (Socket) | WH (CAN_H)
5 (Socket) | BU (CAN_L)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typeCAN bus/DeviceNet™, black
Cable type (abbreviation)92X
Cable abbreviationLI2XCHX02XS
UL AWM style21281 (80°C/300 V)
Cable structure2xAWG24/19+2xAWG22/19
Conductor cross section2x 0.25 mm² (Signal)
2x 0.34 mm² (Power)
1x 0.38 mm² (Drain wire)
AWG signal line24
AWG power supply22
Conductor structure signal line19x 0.13 mm
Conductor structure, voltage supply19x 0.16 mm
Core diameter including insulation1.9 mm (Signal)
1.4 mm (Power)
Thickness, insulation0.6 mm (Signal)
0.3 mm (Power)
Wire colorsRed-black, blue-white
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined foil
Overall twist2 pairs around a drain wire in the center to the core
ShieldingTinned copper braided shield
Optical shield covering70 %
External sheath, colorblack
Outer sheath thickness1.15 mm
External cable diameter D6.9 mm ±0,3 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Cable weight70 kg/km
Outer sheath, materialFRNC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 200 MΩ*km (at 20 °C)
Conductor resistance90 Ω/km (Signal)
55 Ω/km (Power)
Working capacitance39.8 nF (at 1 kHz, core/core)
Wave impedance120 Ω ±12 Ω (f = 1 MHz)
Signal runtime4.46 ns/m
Nominal voltage, cable≤ 300 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceAccording to IEC 60332-3-25 (Cat. D)
Halogen-freeyes
Resistance to oilyes
Other resistanceUV resistant
Ambient temperature (operation)-40 °C ... 105 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1410494 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 5
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
