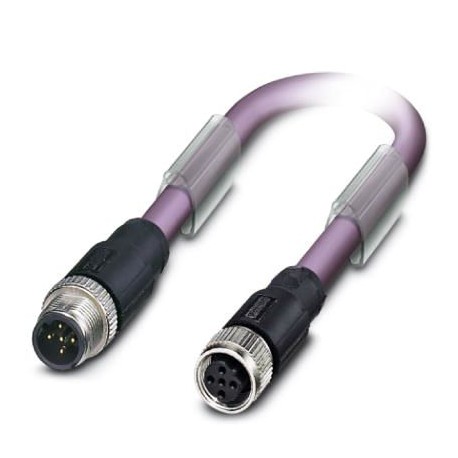

PHOENIX CONTACT SAC-2P-M12MSB/10,0-910/M12FSB SAC-2P-M12MSB/10,0-910/M12FSB 1507395 PHOENIX CONTACT Bus system cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-2P-M12MSB/10,0-910/M12FSB 1507395 PHOENIX CONTACT Bus system cable

SAC-2P-M12MSB/10,0-910/M12FSB

1507395

PHOENIX CONTACT

1 Pcs.

Bus system cable Bus system cable, PROFIBUS (12 MBit/s), 2-pole halogen-free, shielded, M12 straight connector, encoding: B, a M12 straight female, encoding: B, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1507395
Packing unit1 pc
Catalog pagePage 429 (C-2-2017)
GTIN4017918900212
Weight per Piece (excluding packing)625.200 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable10 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
Degree of protectionIP65
IP67

General

NoteFurther products with variable cable lengths can be found in the accessories section
Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions2
Insulation resistance≥ 100 MΩ
CodingB - inverse
Signal type/categoryPROFIBUS, 12 Mbps (max. 100 m)
Status displayNo
Overvoltage categoryII
Degree of pollution3
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm (M12 connector)

Material

Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialPA 6.6 (plug), TPU GF (socket)
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Material, knurlsZinc die-cast, nickel-plated
Sealing materialNBR

Pin assignment

Contact | Color (signal designation) | Contact (optional)2 (Plug) | GN (A cable) | 2 (Socket)
4 (Plug) | RD (B cable) | 4 (Socket)

Cable

Cable typePROFIBUS
Cable type (abbreviation)910
UL AWM style21198 (80°C/300 V)
Cable structure1x2xAWG24/19
Conductor cross section2x 0.25 mm² (Signal line)
AWG signal line24
Conductor structure signal line19x 0.13 mm
Core diameter including insulation2.55 mm ±0.07 mm
Wire colorsRed, green
Overall twist2 cores with 2 fillers to the core
ShieldingPlastic-coated aluminum foil, tinned copper braided shield
Optical shield covering85 %
External sheath, colorviolet RAL 4001
External cable diameter D7.8 mm ±0.2 mm
Smallest bending radius, fixed installation40 mm
Smallest bending radius, movable installation65 mm
Number of bending cycles4000000
Bending radius65 mm
Traversing path4.5 m
Traversing rate3 m/s
Acceleration3 m/s²
Number of bending cycles5000000
Bending radius80 mm
Traversing path4.5 m
Traversing rate3 m/s
Acceleration3 m/s²
Cable weight90 kg/km
Outer sheath, materialPUR
Material, fillerPP
Material conductor insulationFoam-Skin PP
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 5 GΩ*km
Conductor resistance≤ 78.6 Ω/km
Cable capacitynom. 30 pF/m
Wave impedance150 Ω ±10 % (3 MHz ... 20 MHz)
Attenuation≤ 0.049 dB/m (at 16 MHz)
Nominal voltage, cable30 V
Test voltage Core/Core1500 V (50 Hz, 1 min.)
Test voltage Core/Shield1500 V (50 Hz, 1 min.)
Flame resistanceUL 1581, Sec. 1060 (FT-1)
IEC 60332-1-2
Halogen-freein accordance with DIN VDE 0472 part 815
according to IEC 60754-1
Other resistanceLow adhesion
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-30 °C ... 80 °C (cable, flexible installation)
≤ 70 °C (cable, drag chain applications)

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1507395 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 2
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -30 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
