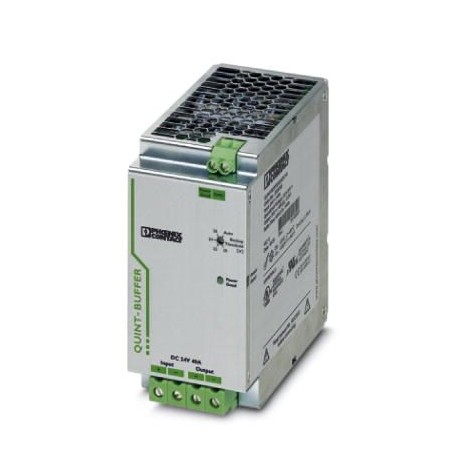

QUINT-BUFFER/24DC/24DC/40 2320393 PHOENIX CONTACT Buffer module

QUINT-BUFFER/24DC/24DC/40

2320393

PHOENIX CONTACT

1 Pcs.

Buffer module QUINT buffer module with maintenance-free energy storage capacitor for rail mounting, decoupled input: 24 V DC, decoupled output: 24 V DC/40 A, with integrated SFB (Selective Fuse Breaking Technology), incl. universal adapter for mounted UTA 107 rail

Automation > Accessories/spare parts for UPS
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2320393
Packing unit1 pc
Catalog pagePage 235 (C-6-2015)
GTIN4046356554114
Weight per Piece (excluding packing)1,100.000 g
Custom tariff number85049091
Country of originCN (China)

Dimensions

Width64 mm
Height130 mm
Depth125 mm
Width with alternative assembly122 mm
Height with alternative assembly130 mm
Depth with alternative assembly67 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2
Installation height2000 m

Input data

Input voltage24 V DC
Input voltage range18 V DC ... 30 V DC
Current consumption (maximum)45 A (Conduction current)
Current consumption (idle)0.1 A (No-load)
Current consumption (charging process)0.7 A (charging process)
Fixed connect threshold< 20 V DC (< 22 V; < 24 V; < 26 V)
Variable connect threshold(UIN- 1 V)/0.1 s

Output data (24 V DC mains operation)

Nominal output voltage24 V DC
Output voltage range (depends on the input voltage)18 V DC ... 30.5 V DC
Nominal output current (IN)40 A
POWER BOOST (IBoost)
Selective Fuse Breaking (ISFB)

Output data (24 V DC battery operation)

Nominal output voltage24 V DC
Output voltage range (depends on the input voltage)19.2 V DC ... 27.6 V DC
Nominal output current (IN)40 A
POWER BOOST (IBoost)
Selective Fuse Breaking (ISFB)

General output data

Efficiency> 99 % (Mains operation, with charged energy storage)

General

IQ technologyno
Net weight1.1 kg
Memory mediumElectrolytic capacitor
Protection classIII
MTBF (IEC 61709, SN 29500)> 902000 h (40 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section AWG min.8
Conductor cross section AWG max.6
Stripping length10 mm
Screw threadM4

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section AWG min.8
Conductor cross section AWG max.6
Stripping length10 mm
Screw threadM4

Signaling

Output namePower Good signal output active (high = buffer module charged)
Output descriptionPower Good
Output voltage+ 24 V
Continuous load current20 mA
Status displayLED "Power Good", green
Note on status displayBuffer module is loaded: LED ON
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Screw threadM4

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Safety of transformersEN 61558-2-17
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV) and EN 60204 (PELV)
Standard - Safe isolationDIN VDE 0106-101
UL approvalsUL/C-UL Recognized UL 60950-1
UL Listed UL 508
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2320393 Data networking products (EC002850)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No
Width (EF000008) 64 mm
Height (EF000040) 130 mm
Depth (EF000049) 131.6 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
