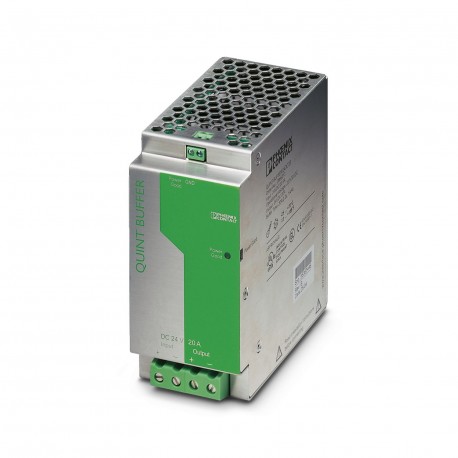

PHOENIX CONTACT QUINT-BUFFER/24DC/20 QUINT-BUFFER/24DC/20 2866213 PHOENIX CONTACT Buffer module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QUINT-BUFFER/24DC/20 2866213 PHOENIX CONTACT Buffer module

QUINT-BUFFER/24DC/20

2866213

PHOENIX CONTACT

1 Pcs.

Buffer module 24 V DC/20 A buffer module, maintenance-free energy storage based on capacitor. Decoupled input and output. In the download area there is, among other things, a clearly arranged selection table with charging currents and buffer times as well as loading times according to buffer time. 24 V DC/20 A buffer module, maintenance-free capacitor-based storage. Decoupled input and output. In the download area, among other things, you will find a clear selection table with load currents and coverage times as well as charging times after buffer mode.

Automation > Accessories/spare parts for UPS
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866213
Packing unit1 pc
Catalog pagePage 586 (IF-2009)
GTIN4017918959739
Weight per Piece (excluding packing)1,000.000 g
Custom tariff number85049091
Country of originCN (China)

Dimensions

Width64 mm
Height130 mm
Depth125 mm
Width with alternative assembly122 mm
Height with alternative assembly130 mm
Depth with alternative assembly67 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage24 V DC
Input voltage range22.5 V DC ... 30 V DC
Current consumptionapprox. 0.1 A
0.6 A (charging process)
20.6 A (max.)
Current consumption (maximum)20.6 A (max.)
Current consumption (idle)approx. 0.1 A
Current consumption (charging process)0.6 A (charging process)
Buffer period0.2 s (20 A)
4 s (1 A)
Type of protectionTransient surge protection
Protective circuit/componentSuppressor diode, 35 V DC

Output data

Nominal output voltage24 V DC (depending on the input voltage)
Setting range of the output voltage (USet)22 V DC ... 28.5 V DC
Nominal output current (IN)20 A
Connection in parallelYes, for increasing the buffer time and for redundancy
Connection in seriesyes
Feedback resistance< 35 V DC (buffer mode)
Output overvoltage protection< 35 V DC
Residual ripple< 100 mVPP(buffer mode)
Output power480 W
Peak switching voltages nominal load< 100 mVPP(20 MHz)
Type of protectionTransient surge protection
Protective circuit/componentSuppressor diode, 35 V DC

General

IQ technologyno
Net weight1 kg
Memory mediumInternal, capacity
Operating voltage displayGreen LED
Efficiency> 95 %
Insulation voltage input/output1 kV (routine test)
1 kV (type test)
Protection classIII
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 500000 h
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.10 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Stripping length10 mm
Screw threadM4

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.10 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Stripping length10 mm
Screw threadM4

Signaling

Output nameActive (high = buffer module is loaded)
Output descriptionPower Good
Maximum switching voltage≤ 24 V
Output voltage+ 24 V
Continuous load current≤ 20 mA
Status displayLED "Power Good", green
Note on status displayBuffer module is loaded: LED ON
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm
Screw threadM3

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 55011 (EN 55022)
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge8 kV
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V
Standards/regulationsEN 61000-4-11
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Safety of transformersEN 61558-2-17
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV) and EN 60204 (PELV)
Standard - Safe isolationDIN VDE 0106-101
Shipbuilding approvalDNV GL (EMC A), ABS
UL approvalsUL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL/C-UL Listed UL 1604 Class I, Division 2, Groups A, B, C, D
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2866213 Data networking products (EC002850)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No
Width (EF000008) 64 mm
Height (EF000040) 130.05 mm
Depth (EF000049) 131.75 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
