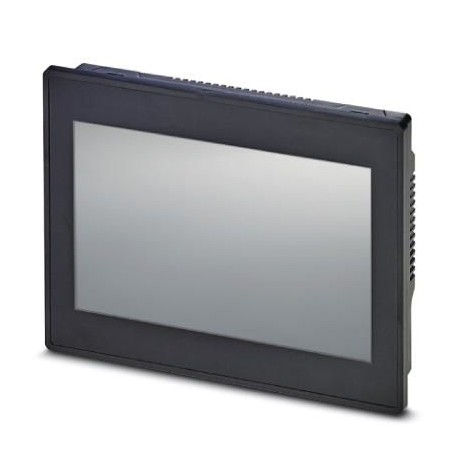

BTP 2070W 1046666 PHOENIX CONTACT Touch panel
BTP 2070W
1046666
PHOENIX CONTACT
1 Pcs.
Touch panel
Touch panel with 17.8 cm / 7"-TFT-display (analog-resistive (polyester)), 800 x 480 pixel(s) (WVGA), 262144 colors, Arm® Cortex-A7®, 700MHz i.MX6 UL, 2x COM (RS-232/422/485), 1x USB 2.0, Typ A, 1x USB 2.0, Typ B, 1x Ethernet (10/100 MBits/s), RJ45, Windows® Embedded Compact 7 and user software: Visu+. (Bus system: SIN)
Automation > Graphic panel
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1046666 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626642963 |
| Weight per Piece (excluding packing) | 400.000 g |
| Custom tariff number | 84714100 |
| Country of origin | IN (India) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| External dimension, width | 186 mm |
|---|---|
| External dimension, height | 138 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 175 mm |
| Installation dimension, height | 127 mm |
| Installation dimension, depth | 31 mm |
| Note regarding installation dimension | Installation cutout |
Display
| Display | 17.8 cm/7" TFT |
|---|---|
| Brightness | 300 cd/m², typical (adjustable) |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Backlighting | LED |
| Display backlight MTBF | 20000 h |
| Touch technology | analog resistive (polyester) |
| Colors | 262144 colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 50 ° |
| Reading angle bottom | 70 ° |
Computer data
| Processor | ARM9™i.MX28, 454 MHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| User software | Visu+ |
| RAM | 128 MB DDR2 SDRAM |
| Mass storage | Flash, 512 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x COM (RS-232/422/485) |
| 1x USB 2.0, Typ A | |
| 1x USB 2.0, Typ B | |
| Bus system | without |
| Slots | 1x SD |
Ambient conditions
| Degree of protection | IP66 (on the front), IP20 (on the back) |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (operation) | DIN EN 60068-2-6 |
| Shock | DIN EN 60068-2-27 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 1 |
| Number of HW-interfaces RS-232 (EF003021) | 2 |
| Number of HW-interfaces RS-422 (EF003022) | 2 |
| Number of HW-interfaces RS-485 (EF003023) | 2 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Type of display (EF008244) | TFT |
| Colour display (EF003097) | Yes |
| Number of pixels, horizontal (EF003099) | 800 |
| Number of pixels, vertical (EF003100) | 480 |
| Touch technology (EF010884) | Other |
| With message system (incl. buffer and confirmation) (EF003110) | No |
| Degree of protection (IP), front side (EF003118) | IP66 |
| Operating temperature (EF002393) | 0 °C |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Suitable for safety functions (EF001597) | No |
| Width of the front (EF003651) | 186 mm |
| Height of the front (EF003652) | 138 mm |
| Built-in depth (EF000218) | 31 mm |
