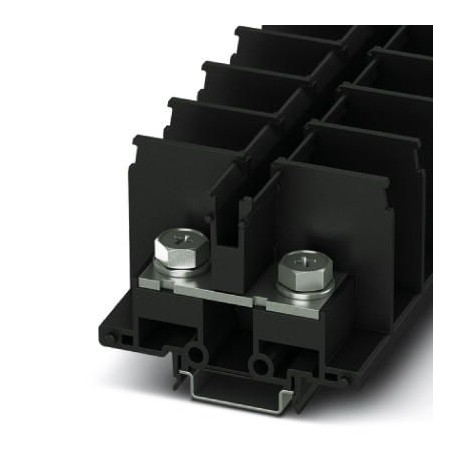

BTO 38 3281200 PHOENIX CONTACT Feed-through modular terminal block

BTO 38

3281200

PHOENIX CONTACT

25 Pcs.

Feed-through modular terminal block Feed-through terminal block, nominal voltage: 690 V, nominal current: 125 A, connection type: Annular cable terminal, number of connections: 2, width: 26 mm, height: 56 mm, color: black, mounting class: NS 35/7.5, NS 35/15

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3281200
Packing unit25 pc
GTIN4055626406954
Weight per Piece (excluding packing)88.700 g
Custom tariff number85369010
Country of originIN (India)

General

Number of levels1
Number of connections2
Nominal cross section35 mm²
Colorblack
Insulating materialPC
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupIIIa
Maximum power dissipation for nominal condition4.06 W
Ambient temperature (operation)-40 °C ... 110 °C
Connection methodRing cable lug
Connection in acc. with standardIEC 60947-7-1
Maximum load current125 A
Nominal current IN125 A
Nominal voltage UN690 V
Open side panelYes

Dimensions

Width26 mm
Length77.2 mm
Height NS 35/7,557.3 mm
Height NS 35/1564.8 mm

Connection data

Connection methodRing cable lug
Connection in acc. with standardIEC 60947-7-1
Screw threadM8
Tightening torque, min10 Nm
Tightening torque max13.5 Nm
Conductor cross section solid min.1.5 mm²
Conductor cross section solid max.35 mm²
Conductor cross section flexible min.1.5 mm²
Conductor cross section flexible max.35 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible2
Conductor cross section flexible, with ferrule with plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.35 mm²
Cable lug connection according to standardDIN 46235
Min. cross section for cable lug connection1.5 mm²
Max. cross section for cable lug connection35 mm²
AWG min20
AWG max2
Hole diameter, min.8.4 mm
Cable lug width, max.23.7 mm
Bolt diameter8 mm
Screw threadM8
Tightening torque, min10 Nm
Tightening torque max13.5 Nm

Connection data (JIS standard)

Connection methodRing cable lug
Connection in acc. with standardJIS 8207-7-1
Conductor cross section flexible min.1.25 mm²
Conductor cross section flexible max.38 mm²
Cable lug connection according to standardJIS 8207-7-1
Min. cross section for cable lug connection1.25 mm²
Max. cross section for cable lug connection38 mm²
Hole diameter, min.8.4 mm
Cable lug width, max.23.7 mm
Bolt diameter8 mm
Screw threadM8
Tightening torque, min10 Nm
Tightening torque max13.5 Nm
Nominal current IN135 A
Maximum load current135 A
Nominal voltage UN600 V

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
