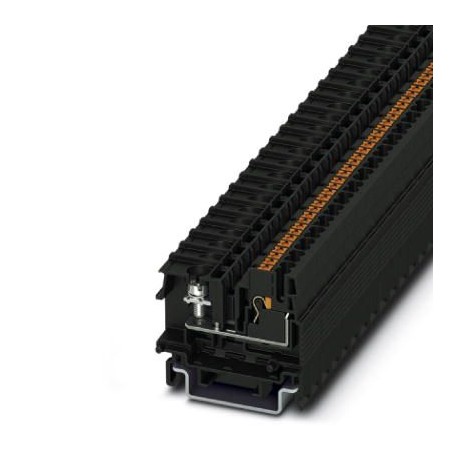

BTH 2,0-F 3281111 PHOENIX CONTACT Feed-through terminal block
BTH 2,0-F
3281111
PHOENIX CONTACT
50 Pcs.
Feed-through terminal block
Feed-through terminal block, with flange on the left side, connection type: Annular cable terminal, Push-in connection, width: 17.5 mm, color: black, mounting: NS 35/7.5, NS 35/15, Direct mounting with a cable tie
Automation > Feed-through terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3281111 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626620558 |
| Weight per Piece (excluding packing) | 9.440 g |
| Custom tariff number | 85369010 |
| Country of origin | IN (India) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 3 |
| Nominal cross section | 2.5 mm² |
| Color | black |
| Insulating material | PC |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | IIIa |
| Maximum power dissipation for nominal condition | 0.77 W |
| Ambient temperature (operation) | -40 °C ... 110 °C |
| Connection method | Ring cable lug |
| Connection in acc. with standard | IEC 60947-7-1 |
| Maximum load current | 24 A |
| Nominal current IN | 24 A |
| Nominal voltage UN | 690 V |
| Connection method | Push-in connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Maximum load current | 24 A (The maximum load current must not be exceeded by the total current of all connected conductors.) |
| Nominal current IN | 24 A |
| Nominal voltage UN | 690 V |
| Open side panel | Yes |
Connection data
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | IEC 60947-7-1 |
| Screw thread | M3,5 |
| Tightening torque, min | 1 Nm |
| Tightening torque max | 1.2 Nm |
| Stripping length | 10 mm ... 12 mm |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 14 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 0.14 mm² |
| Max. cross section for cable lug connection | 2.5 mm² |
| AWG min | 26 |
| AWG max | 16 |
| Hole diameter, min. | 3.7 mm |
| Cable lug width, max. | 6.8 mm |
| Bolt diameter | 3.5 mm |
| Screw thread | M3,5 |
| Tightening torque, min | 1 Nm |
| Tightening torque max | 1.2 Nm |
| Connection method | Push-in connection |
| Connection in acc. with standard | IEC 60947-7-1 |
| Stripping length | 10 mm ... 12 mm |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 14 |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 14 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.14 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.14 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.5 mm² |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 14 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.34 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.34 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 1.5 mm² |
Connection data (JIS standard)
| Connection method | Ring cable lug |
|---|---|
| Connection in acc. with standard | JIS 8207-7-1 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 2 mm² |
| Cable lug connection according to standard | JIS 8207-7-1 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 2 mm² |
| Hole diameter, min. | 3.7 mm |
| Cable lug width, max. | 6.8 mm |
| Bolt diameter | 3.5 mm |
| Screw thread | M3,5 |
| Tightening torque, min | 1 Nm |
| Tightening torque max | 1.3 Nm |
| Nominal current IN | 21 A |
| Maximum load current | 21 A |
| Nominal voltage UN | 600 V |
| Connection method | Push-in connection |
| Connection in acc. with standard | JIS 8207-7-1 |
| Single-wire/terminal point, solid diameter min. | 0.5 mm |
| Single-wire/terminal point, solid diameter max. | 1.6 mm |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 2 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2 mm² |
| Connection cross sections directly pluggable | 0.8 mm 1.6 mm |
| Single-wire/terminal point, solid diameter min. | 0.8 mm |
| Single-wire/terminal point, solid diameter max. | 1.6 mm |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 2 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1.25 mm² |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
