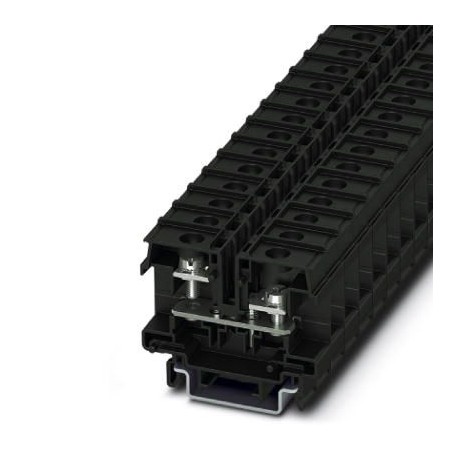

PHOENIX CONTACT BT 5,5-F BT 5,5-F 3281136 PHOENIX CONTACT Feed-through modular terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BT 5,5-F 3281136 PHOENIX CONTACT Feed-through modular terminal block

BT 5,5-F

3281136

PHOENIX CONTACT

50 Pcs.

Feed-through modular terminal block Feed-through terminal block, with flange on the left side, nominal voltage: 690 V, nominal current: 41 A, connection type: Annular cable terminal, number of connections: 2, width: 11 mm, height: 39.9 mm, color: black, mounting type: Direct screwed or on rail

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3281136
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626406831
Weight per Piece (excluding packing)15.360 g
Custom tariff number85369010
Country of originIN (India)

General

Number of levels1
Number of connections2
Potentials1
Nominal cross section6 mm²
Colorblack
Insulating materialPC
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupIIIa
Maximum power dissipation for nominal condition1.02 W
Ambient temperature (operation)-40 °C ... 110 °C
Maximum load current41 A
Nominal current IN41 A
Nominal voltage UN690 V
Open side panelYes
Shock protection test specificationIEC 60529:2001-02
Back of the hand protectionguaranteed
Note regarding shock protectionElectric shock protection only with insulated cable lug guaranteed.
Result of surge voltage testTest passed
Surge voltage test setpoint9.8 kV
Result of power-frequency withstand voltage testTest passed
Power frequency withstand voltage setpoint1.89 kV
Result of the test for mechanical stability of terminal points (5 x conductor connection)Test passed
Result of tight fit on supportTest passed
Tight fit on carrierNS 35
Setpoint5 N
Result of voltage-drop testTest passed
Requirements, voltage drop≤ 3.2 mV
Result of temperature-rise testTest passed
Short circuit stability resultTest passed
Conductor cross section short circuit testing6 mm²
Short-time current0.72 kA
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s

Dimensions

Width11 mm
Length50.2 mm
Height39.9 mm
Height NS 35/7,541 mm
Height NS 35/1548.5 mm
Pitch11 mm

Connection data

Connection methodRing cable lug
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule with plastic sleeve min.0.2 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
Cable lug connection according to standardDIN 46234
Min. cross section for cable lug connection0.14 mm²
Max. cross section for cable lug connection6 mm²
AWG min26
AWG max10
Hole diameter, min.4.3 mm
Cable lug width, max.9.8 mm
Bolt diameter4 mm
Screw threadM4
Tightening torque, min1.4 Nm
Tightening torque max2 Nm
Screw threadM4
Tightening torque, min1.4 Nm
Tightening torque max2 Nm

Connection data (JIS standard)

Connection methodRing cable lug
Connection in acc. with standardJIS 8207-7-1
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.5.5 mm²
Cable lug connection according to standardJIS 8207-7-1
Min. cross section for cable lug connection0.5 mm²
Max. cross section for cable lug connection5.5 mm²
Hole diameter, min.4.3 mm
Cable lug width, max.9.8 mm
Bolt diameter4 mm
Screw threadM4
Tightening torque, min1.4 Nm
Tightening torque max2 Nm
Nominal current IN40 A
Maximum load current40 A
Nominal voltage UN600 V

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
