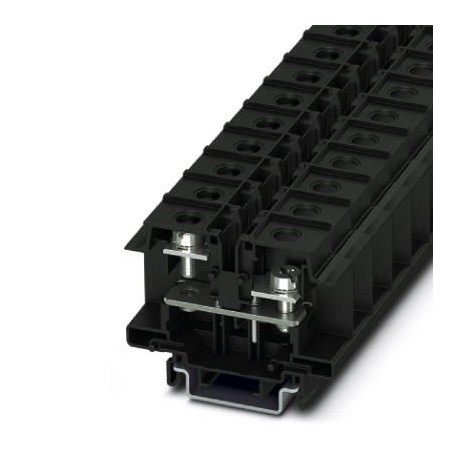

PHOENIX CONTACT BT 14-F BT 14-F 3281179 PHOENIX CONTACT Feed-through modular terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BT 14-F 3281179 PHOENIX CONTACT Feed-through modular terminal block

BT 14-F

3281179

PHOENIX CONTACT

25 Pcs.

Feed-through modular terminal block Feed-through rail terminal block, with flange on the left side, nominal voltage: 690 V, nominal current: 76 A, connection type: Ring cable terminal, number of connections: 2, width: 23.9 mm, height: 43.9 mm, color: black, mounting class: NS 35/7.5, NS 35/15, Direct or rail screwed

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3281179
Packing unit25 pc
Minimum order quantity25 pc
NoteMade to Order (non-returnable)
GTIN4055626406909
Weight per Piece (excluding packing)26.320 g
Custom tariff number85369010
Country of originIN (India)

General

Number of levels1
Number of connections2
Potentials1
Nominal cross section16 mm²
Colorblack
Insulating materialPC
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupIIIa
Maximum power dissipation for nominal condition2.43 W
Ambient temperature (operation)-40 °C ... 110 °C
Maximum load current76 A
Nominal current IN76 A
Nominal voltage UN690 V
Open side panelYes

Dimensions

Width23.9 mm
Length59 mm
Height43.9 mm
Height NS 35/7,545.2 mm
Height NS 35/1552.7 mm
Pitch15 mm

Connection data

Connection methodRing cable lug
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible6
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.16 mm²
Cable lug connection according to standardDIN 46234
Min. cross section for cable lug connection0.5 mm²
Max. cross section for cable lug connection16 mm²
AWG min20
AWG max6
Hole diameter, min.5.1 mm
Cable lug width, max.12.7 mm
Bolt diameter5 mm
Screw threadM5
Tightening torque, min2.6 Nm
Tightening torque max3.7 Nm
Screw threadM5
Tightening torque, min2.6 Nm
Tightening torque max3.7 Nm

Connection data (JIS standard)

Connection methodRing cable lug
Connection in acc. with standardJIS 8207-7-1
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.14 mm²
Cable lug connection according to standardJIS 8207-7-1
Min. cross section for cable lug connection0.5 mm²
Max. cross section for cable lug connection14 mm²
Hole diameter, min.5.1 mm
Cable lug width, max.12.7 mm
Bolt diameter5 mm
Screw threadM5
Tightening torque, min2.6 Nm
Tightening torque max3.7 Nm
Nominal current IN70 A
Maximum load current70 A
Nominal voltage UN600 V

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
