View larger
Images are for illustrative purposes only. Please refer to data sheet for details

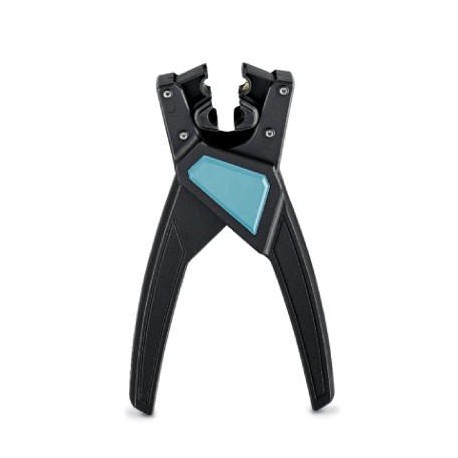

WIREFOX-D SHIELD 1212172 PHOENIX CONTACT Stripping tool
WIREFOX-D SHIELD
1212172
PHOENIX CONTACT
1 Pcs.
Stripping tool
Wire strippers for removing cables for cable openings and branches and screen connections with a diameter of 8 - 9 mm, up to 1.2 mm insulation thickness, stripping length from 20 mm
Tools > Wire stripper pliers
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1212172 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 411 (C-3-2017) |
| GTIN | 4046356454308 |
| Weight per Piece (excluding packing) | 145.500 g |
| Custom tariff number | 82032000 |
| Country of origin | DE (Germany) |
Dimensions
| Length (b) | 166 mm |
|---|---|
| Width (a) | 25 mm |
| Height (c) | 102 mm |
| Cable diameter | 8 mm ... 9 mm |
| Stripping length | 20 mm |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
|---|
Classifications
eCl@ss 10.0.121043706eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021043700eCl@ss 7.021043706eCl@ss 8.021043706eCl@ss 9.021043706
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 166 mm |
| Strip range cross-section (EF007568) | 16 mm² |
| Strip range diameter (EF007567) | 8 mm |
| Strip length adjustable (EF006222) | No |
| Depth of notch adjustable (EF005931) | No |
| Self-adjusting (EF022889) | Yes |
| Jaw length (EF005953) | 30 mm |
| Head width (EF006645) | 23 mm |
| Head height (EF025409) | 68 mm |
| Longitudinal section (EF001805) | Yes |
| Round edge (EF001806) | No |
| Spiral cut (EF005299) | No |
| With wire cutter (EF000163) | No |
| Insulated (EF000019) | Yes |
| Isolation protection 1000 V (EF001463) | No |
| Handle cover (EF013792) | Plastic grips |
| Grip design (EF007841) | 1-component |
| Surface protection (EF000139) | Untreated |
| Surface treatment (EF025109) | Untreated |
| ESD tested (EF009014) | No |
| With impact protection (EF007939) | No |
| Weight (EF000167) | 100 g |
| VDE tested (EFDE0001) | No |
