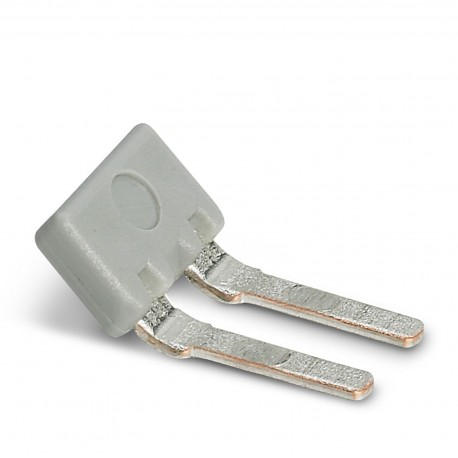

EBPL 2-3,81 1733495 PHOENIX CONTACT Insertion bridge
EBPL 2-3,81
1733495
PHOENIX CONTACT
50 Pcs.
Insertion bridge
Insertion bridge for connectors with screw connection in pitch of 3.81 mm
Insertion bridge for plugs featuring a screw connection with a 3.81 mm pitch
Connectors > Accessories/spare parts for industrial connectors
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Bridge |
| Product family | EBP |
| Product line | COMBICON Connectors Special |
| Number of positions | 2 |
| Pitch | 3.81 mm |
| Number of connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Data management status | |
| Article revision | 00 |
Dimensions
| Pitch | 3.81 mm |
Material specifications
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Material data - housing | |
| Color (Housing) | gray (7042) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Connector
| Connection 1 | |
| Insulating material | PA |
| CTI according to IEC 60112 | 600 |
