View larger
Images are for illustrative purposes only. Please refer to data sheet for details

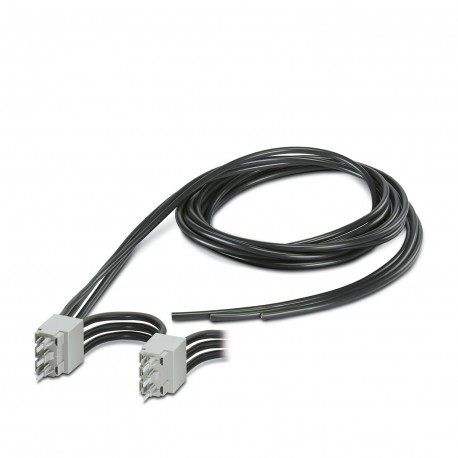

BRIDGE- 3-1M 2901655 PHOENIX CONTACT Jumper
BRIDGE-3-1M
2901655
PHOENIX CONTACT
1 Pcs.
Jumper
Three-phase loop insertion bridge for 3 modules of the CONTACTRON family with screw connection and housing width of 22.5 mm, connection cable: 1 m
Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2901655 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356622776 |
| Weight per Piece (excluding packing) | 188.600 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Operating voltage range | 42 V AC ... 575 V AC |
|---|---|
| Operating current | ≤ 25 A |
| Number of bridgeable modules | 3 |
| Connecting cable length | 1 m |
| Color | gray |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.127371392eCl@ss 5.027379201eCl@ss 5.127379100eCl@ss 6.027379200eCl@ss 7.027379201eCl@ss 8.027379201eCl@ss 9.027379201
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
