View larger
Images are for illustrative purposes only. Please refer to data sheet for details

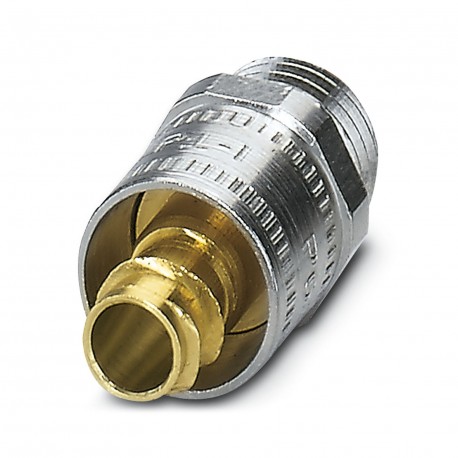

WP-GT BRASS PG7 3241023 PHOENIX CONTACT Screw connection
WP-GT BRASS PG7
3241023
PHOENIX CONTACT
10 Pcs.
Screw connection
Brass cable gland with rotating Pg thread, IP40 degree of protection
Cable gland made from brass with Pg thread, rotatable, IP40 protection
Automation > Screw connection for protective metallic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Corrugated pipe screw connection |
| Type | Outer thread |
| Cable outlet | straight |
| Thread type | Pg |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 16 mm |
| Height | 29 mm |
| Length | 29 mm |
| Wrench size | 15 mm |
| Wrench size for mounting | 15 mm |
| External dimensions | |
| Outside diameter | 10 mm |
| Internal dimensions | |
| Internal diameter | 6 mm |
Material specifications
| Color | Brass color |
| Material | Brass, nickel-plated |
| Components | halogen-free |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP40 |
| Ambient temperature (operation) | -40 °C ... 250 °C |
