View larger
Images are for illustrative purposes only. Please refer to data sheet for details

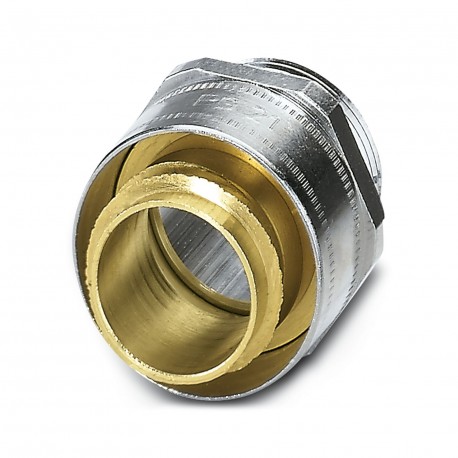

WP-GT BRASS PG21 3241027 PHOENIX CONTACT Screw connection
WP-GT BRASS PG21
3241027
PHOENIX CONTACT
10 Pcs.
Screw connection
Brass cable gland with rotating Pg thread, IP40 degree of protection
Cable gland made from brass with Pg thread, rotatable, IP40 protection
Automation > Screw connection for protective metallic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Corrugated pipe screw connection |
| Type of the screw connection | Conduit adapter |
| Type | Outer thread |
| Cable outlet | straight |
| Thread type | Pg |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 37 mm |
| Height | 35 mm |
| Length | 35 mm |
| Wrench size | 34 mm |
| Wrench size for mounting | 34 mm |
| External dimensions | |
| Outside diameter | 27 mm |
| Internal dimensions | |
| Internal diameter | 20.5 mm |
Material specifications
| Color | Brass color |
| Material | Brass, nickel-plated |
| Material for screw connection | Brass, nickel-plated |
| Components | halogen-free |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | Conduit adapter |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP40 |
| Ambient temperature (operation) | -40 °C ... 250 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 20.5 mm |
| Revolving thread (EF001757) | No |
| Connection type to housing (EF008847) | Thread |
| Thread type (EF001758) | Other |
| Thread connection size (EF007834) | Other |
| One-piece (EF001774) | No |
| Housing material (EF001596) | Other |
| Surface protection (EF000139) | Nickel-plated |
| Lowest inner diameter hose (EF001760) | 22 mm |
| Max. outer diameter hose (EF002504) | 27 mm |
| Thread length (EF000368) | 10 mm |
| Total length (EF000369) | 35 mm |
| Total height (EF001761) | 35 mm |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit CSA (EF001765) | No |
| Approved in combination with protective conduit UL (EF001787) | No |
| Approved in combination with protective conduit FI (EF001788) | No |
| Operating temperature (EF001742) | -40 °C |
| Number of inlets (EF003593) | 1 |
| With earthing connection (EF006304) | No |
