View larger
Images are for illustrative purposes only. Please refer to data sheet for details

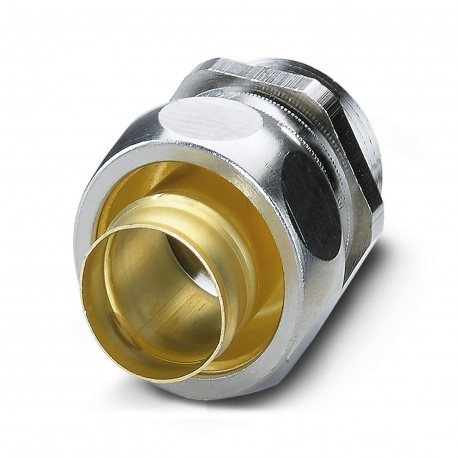

WP-G BRASS IP65 PG21 3241055 PHOENIX CONTACT Screw connection
WP-G BRASS IP65 PG21
3241055
PHOENIX CONTACT
10 Pcs.
Screw connection
Brass cable gland with Pg thread, IP65 degree of protection
Cable gland made of brass with Pg thread, protection class IP65
Automation > Screw connection for protective metallic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3241055 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 644 (C-3-2017) |
| GTIN | 4046356712057 |
| Weight per Piece (excluding packing) | 74.010 g |
| Custom tariff number | 74122000 |
| Country of origin | DE (Germany) |
Dimensions
| Length (b) | 40 mm |
|---|---|
| Width (a) | 39 mm |
| Height (c) | 40 mm |
| Wrench size | 34 mm |
| Inner diameter (f) | 20.5 mm |
| Outside diameter | 27 mm |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.021132007eCl@ss 5.121132000eCl@ss 6.021132000eCl@ss 7.027439203eCl@ss 8.027439203eCl@ss 9.027430310
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 20.5 mm |
| Revolving thread (EF001757) | No |
| Connection type to housing (EF008847) | Thread |
| Thread type (EF001758) | Other |
| Thread connection size (EF007834) | Other |
| One-piece (EF001774) | No |
| Housing material (EF001596) | Other |
| Surface protection (EF000139) | Nickel-plated |
| Lowest inner diameter hose (EF001760) | 22 mm |
| Max. outer diameter hose (EF002504) | 27 mm |
| Thread length (EF000368) | 10 mm |
| Total length (EF000369) | 40 mm |
| Total height (EF001761) | 40 mm |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit CSA (EF001765) | No |
| Approved in combination with protective conduit UL (EF001787) | No |
| Approved in combination with protective conduit FI (EF001788) | No |
| Operating temperature (EF001742) | -40 °C |
| Number of inlets (EF003593) | 1 |
| With earthing connection (EF006304) | No |
