View larger
Images are for illustrative purposes only. Please refer to data sheet for details

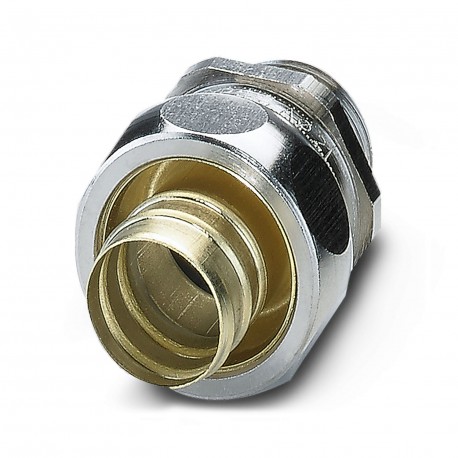

WP-G BRASS IP65 M20 3241061 PHOENIX CONTACT Screw connection
WP-G BRASS IP65 M20
3241061
PHOENIX CONTACT
10 Pcs.
Screw connection
Brass cable gland with metric thread, IP65 degree of protection
Cable gland made from brass with metric thread, IP65 protection
Automation > Screw connection for protective metallic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Corrugated pipe screw connection |
| Type of the screw connection | Conduit adapter |
| Type | Outer thread |
| Cable outlet | straight |
| Thread type | metric |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 31 mm |
| Height | 33 mm |
| Length | 33 mm |
| Wrench size | 27 mm |
| Wrench size for mounting | 27 mm |
| 29 mm | |
| External dimensions | |
| Outside diameter | 21 mm |
| Internal dimensions | |
| Internal diameter | 15.5 mm |
Material specifications
| Material | Brass, nickel-plated |
| Material for screw connection | Brass, nickel-plated |
| Components | halogen-free |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | Conduit adapter |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 15.5 mm |
| Revolving thread (EF001757) | No |
| Connection type to housing (EF008847) | Thread |
| Thread type (EF001758) | Metric |
| Thread connection size (EF007834) | Other |
| One-piece (EF001774) | No |
| Housing material (EF001596) | Other |
| Surface protection (EF000139) | Nickel-plated |
| Lowest inner diameter hose (EF001760) | 17 mm |
| Max. outer diameter hose (EF002504) | 21 mm |
| Thread length (EF000368) | 10 mm |
| Total length (EF000369) | 33 mm |
| Total height (EF001761) | 33 mm |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit CSA (EF001765) | No |
| Approved in combination with protective conduit UL (EF001787) | No |
| Approved in combination with protective conduit FI (EF001788) | No |
| Operating temperature (EF001742) | -40 °C |
| Number of inlets (EF003593) | 1 |
| With earthing connection (EF006304) | No |
