View larger
Images are for illustrative purposes only. Please refer to data sheet for details

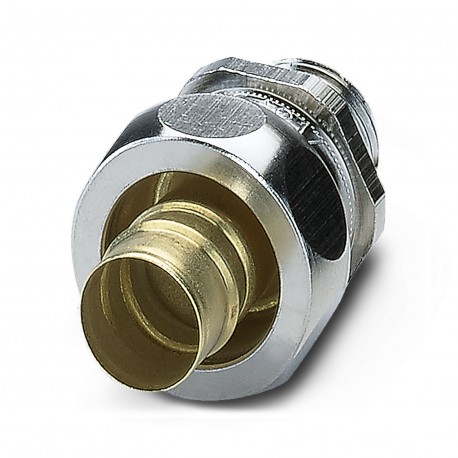

WP-G BRASS IP65 M16 3241060 PHOENIX CONTACT Screw connection
WP-G BRASS IP65 M16
3241060
PHOENIX CONTACT
10 Pcs.
Screw connection
Brass cable gland with metric thread, IP65 degree of protection
Brass cable gland with metric thread, IP65 rating
Automation > Screw connection for protective metallic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3241060 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 644 (C-3-2017) |
| GTIN | 4046356712101 |
| Weight per Piece (excluding packing) | 30.370 g |
| Custom tariff number | 74122000 |
| Country of origin | DE (Germany) |
Dimensions
| Length (b) | 33 mm |
|---|---|
| Width (a) | 27 mm |
| Height (c) | 33 mm |
| Wrench size | 23 mm |
| Inner diameter (f) | 11.5 mm |
| Outside diameter | 17 mm |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.021132007eCl@ss 5.121132000eCl@ss 6.021132000eCl@ss 7.027439203eCl@ss 8.027439203eCl@ss 9.027430310
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 11.5 mm |
| Revolving thread (EF001757) | No |
| Connection type to housing (EF008847) | Thread |
| Thread type (EF001758) | Metric |
| Thread connection size (EF007834) | Other |
| One-piece (EF001774) | No |
| Housing material (EF001596) | Other |
| Surface protection (EF000139) | Nickel-plated |
| Lowest inner diameter hose (EF001760) | 13 mm |
| Max. outer diameter hose (EF002504) | 17 mm |
| Thread length (EF000368) | 10 mm |
| Total length (EF000369) | 33 mm |
| Total height (EF001761) | 33 mm |
| Approved in combination with protective conduit according to DIN EN 61386-23 (EF008142) | No |
| Approved in combination with protective conduit CSA (EF001765) | No |
| Approved in combination with protective conduit UL (EF001787) | No |
| Approved in combination with protective conduit FI (EF001788) | No |
| Operating temperature (EF001742) | -40 °C |
| Number of inlets (EF003593) | 1 |
| With earthing connection (EF006304) | No |
