View larger
Images are for illustrative purposes only. Please refer to data sheet for details

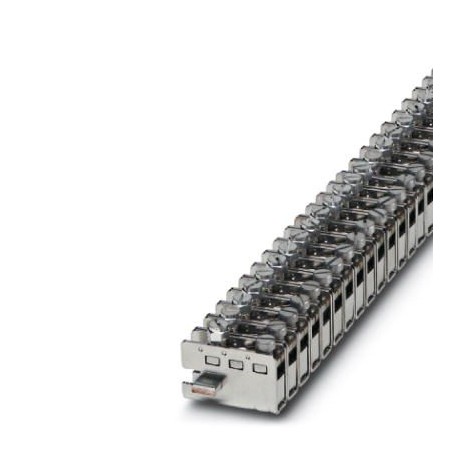

AZK 35 0702997 PHOENIX CONTACT Branch terminal, Connection method Screw connection, Load current : 125 A, Cr..
AZK 35
0702997
PHOENIX CONTACT
10 Pcs.
Branch terminal, Connection method Screw connection, Load current : 125 A, Cross section: 0.75 mm² - 35 mm², Width: 12 mm, Color: aluminum
Branch module, rated current: 125 A, connection type: Screw connection, Sizing cross-section: 35 mm², cross-section: 0.75 mm² - 35 mm², mounting: Neutral busbar, color: aluminum color
Automation > Busbar terminal
CABINET add-on
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Color | aluminiumfarben |
|---|---|
| Nominal cross section | 35 mm² |
General
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
|---|---|
| Nominal current IN | 125 A |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
Dimensions
| Length | 40 mm |
|---|---|
| Width | 12 mm |
Connection data
| Conductor cross section solid min. | 0.75 mm² |
|---|---|
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 0.75 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section AWG min. | 18 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.75 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.75 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| 2 conductors with same cross section, solid min. | 0.75 mm² |
| 2 conductors with same cross section, solid max. | 10 mm² |
| 2 conductors with same cross section, stranded min. | 0.75 mm² |
| 2 conductors with same cross section, stranded max. | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 10 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.75 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Connection method | Screw connection |
| Stripping length | 15 mm |
| Screw thread | M6 |
| Tightening torque, min | 3.2 Nm |
| Tightening torque max | 3.7 Nm |
