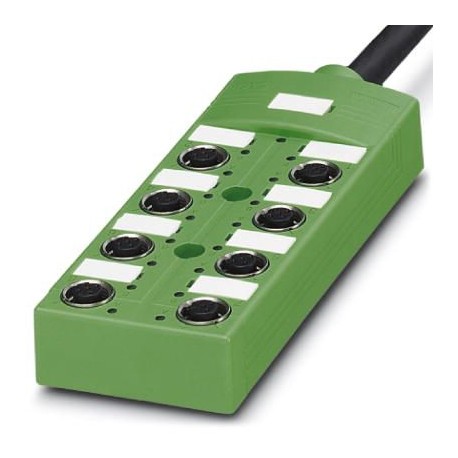

SACB-8/ 8-L-10,0PUR SCO 1517178 PHOENIX CONTACT Sensor/actuator box

SACB-8/ 8-L-10,0PUR SCO

1517178

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Standard, connection type: SPEEDCON M12 Metal female connector, number of plug-in stations: 8, number of poles: 4, coding: A - standard, occupation of plug-in stations: single, status indication: Yes, pnp; Main cable connection: Fixed connection 180°, PUR/PVC, cable length: 10 m, shielding: no

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1517178
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 270 (C-2-2017)
GTIN4017918967840
Weight per Piece (excluding packing)1,417.700 g
Custom tariff number85444290
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions4
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12-SPEEDCON-socket

Ambient conditions

Degree of protectionIP65
IP67
IP69K
Ambient temperature (operation)-30 °C ... 90 °C
-40 °C ... 90 °C (for fixed installation)
-5 °C ... 80 °C (for flexible installation)

Local diagnostics function

Local diagnosticsSupply voltage Green LED
Status display I/O Yellow LED

Master cable connection data

Connection methodFixed connection
Length of cable10 m
Tightening torque slot sensor/actuator cable0.4 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialgold-plated
Contact carrier materialPA
Material of threaded sleeveZinc die-cast
Material of threaded sleeve surfaceNickel-plated
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = WH
2 / 4 (A) = GN
3 / 4 (A) = YE
4 / 4 (A) = GY
5 / 4 (A) = PK
6 / 4 (A) = RD
7 / 4 (A) = BK
8 / 4 (A) = VT
1-8 / 1 (+ 24 V) = BN
1-8 / 3 (0 V) = BU
1-8 / 5 (PE) = GN/YE

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Cable

Cable typePUR/PVC black
Cable type (abbreviation)PUR
Cable abbreviationLiYY11Y-HF
UL AWM style20549 (80°C/300 V)
Conductor cross section8x 0.34 mm² (Signal line)
3x 0.75 mm² (power line)
AWG signal line22
AWG power supply18
Conductor structure signal line19x 0.15 mm
Conductor structure, voltage supply42x 0.15 mm
Core diameter including insulation1.3 mm ±0.1 mm (Signal line)
1.8 mm ±0.1 mm (power line)
Wire colorsbrown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet
Overall twistWires twisted in layers
External sheath, colorblack RAL 9005
Inner sheath thickness≥ 0.15 mm
Outer sheath thickness≥ 0.38 mm
External cable diameter D8.5 mm ±0.2 mm
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles1500000
Minimum bending radius, drag chain applications10 x D
Traversing path2 m
Traversing rate2 m/s
Cable weight107.4 kg/km
Outer sheath, materialPUR
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Insulation resistance≥ 5 MΩ*km
Conductor resistance≤ 53 Ω/km (Signal line)
≤ 26 Ω/km (power line)
Nominal voltage, cable300 V AC
Test voltage Core/Core2000 V (50 Hz, 5 min.)
Special propertiesSilicone-free
Flame resistanceDIN EN 50265
Resistance to oilaccording to VDE 0472 Part 803
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1517178 Sensors (EC002585)
Feature Name Feature Value
Length of the preassembled cable (EF007300) 10 m
Cable length configurable (EF007301) No
Number of sensor-/actuator-slots (EF006939) 8
Number of channels per connector slot (EF006885) 1
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 4
Rated voltage (EF000228) 24 V
Operating voltage (EF003983) 24 V
Max. current carrying capacity per socket (EF004038) 2 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Gold
Material insulation body (EF007543) Polyamide (PA)
With LED indication (EF005950) Yes
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) No
Fix cable version suitable for cable guide chain (EF007461) Yes
Housing colour (EF000136) Black
Operating temperature (EF002393) -30 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 58 mm
Height (EF000040) 26 mm
Depth (EF000049) 153 mm
