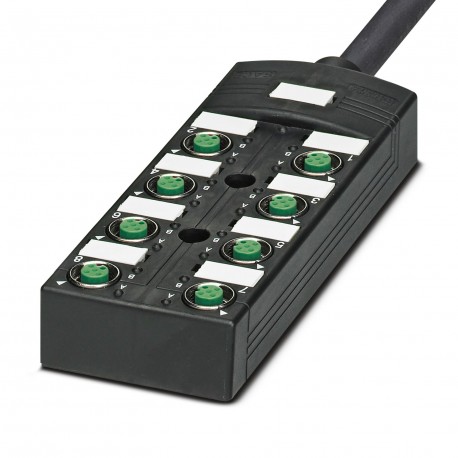

PHOENIX CONTACT SACB-8/16-L-5,0 80MC SCO SACB-8/16-L- 5,0 80MC SCO 1401199 PHOENIX CONTACT Sensor/actuator box View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-8/16-L- 5,0 80MC SCO 1401199 PHOENIX CONTACT Sensor/actuator box

SACB-8/16-L-5,0 80MC SCO

1401199

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box Sensor/actuator box, application: Robotics and drive chains, connection type: SPEEDCON M12 Metal female connector, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupation of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: Fixed connection 180°, highly flexible halogen-free PUR, highly flexible, cable length: 5 m, shielding: no

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1401199
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 167 (C-4-2013)
GTIN4046356536110
Weight per Piece (excluding packing)1,269.000 g
Custom tariff number85444290
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions5
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12-SPEEDCON-socket

Ambient conditions

Degree of protectionIP65
IP67
IP69K
Ambient temperature (operation)-30 °C ... 90 °C
-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

Master cable connection data

Connection methodFixed connection
Length of cable5 m
Tightening torque slot sensor/actuator cable0.4 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialgold-plated
Contact carrier materialPA
Material of threaded sleeveZinc die-cast
Material of threaded sleeve surfaceNickel-plated
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = WH
1 / 2 (B) = GY/PK
2 / 4 (A) = GN
2 / 2 (B) = RD/BU
3 / 4 (A) = YE
3 / 2 (B) = WH/GN
4 / 4 (A) = GY
4 / 2 (B) = BN/GN
5 / 4 (A) = PK
5 / 2 (B) = WH/YE
6 / 4 (A) = RD
6 / 2 (B) = YE/BN
7 / 4 (A) = BK
7 / 2 (B) = WH/GY
8 / 4 (A) = VT
8 / 2 (B) = GY/BN
1-8 / 1 (+ 24 V) = BN
1-8 / 3 (0 V) = BU
1-8 / 5 (PE) = GN/YE

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Cable

Cable typePUR halogen-free, highly flexible
Cable type (abbreviation)80MC
Cable abbreviationLS9Y11Y-J-EFK
Conductor cross section16x 0.5 mm² (Signal line)
3x 1 mm² (power line)
AWG signal line20
AWG power supply17
Conductor structure signal line28x 0.15 mm
Conductor structure, voltage supply56x 0.15 mm
Wire colorsbrown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown
Overall twistWires twisted to an optimum in two layers
External sheath, colorblack RAL 9005
External cable diameter D10.75 mm
Smallest bending radius, fixed installation90 mm
Smallest bending radius, movable installation120 mm
Number of bending cycles5000000
Bending radius120 mm
Traversing path5 m
Traversing rate3 m/s
Acceleration5 m/s²
Torsion force± 120 °/m (≥ 3 million torsion cycles)
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 10 MΩ*km (at 20 °C)
Conductor resistance39 Ω/km (Signal line)
19.5 Ω/m (power line)
Nominal voltage, cable300 V
Test voltage, cable2000 V
Special propertiesSilicone-free
Free of substances which would hinder coating with paint or varnish
Flame resistanceDIN EN 50265-2-1
Halogen-freeThe cable is halogen-free
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistancesomewhat resistant to welding sparks
Ambient temperature (operation)-30 °C ... 70 °C (cable, fixed installation)
5 °C ... 70 °C (cable, flexible installation)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1401199 Sensors (EC002585)
Feature Name Feature Value
Length of the preassembled cable (EF007300) 5 m
Cable length configurable (EF007301) No
Number of sensor-/actuator-slots (EF006939) 8
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Rated voltage (EF000228) 24 V
Operating voltage (EF003983) 24 V
Max. current carrying capacity per socket (EF004038) 2 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Gold
Material insulation body (EF007543) Polyamide (PA)
With LED indication (EF005950) Yes
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) No
Fix cable version suitable for cable guide chain (EF007461) No
Housing colour (EF000136) Black
Operating temperature (EF002393) -30 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 58 mm
Height (EF000040) 26 mm
Depth (EF000049) 153 mm
