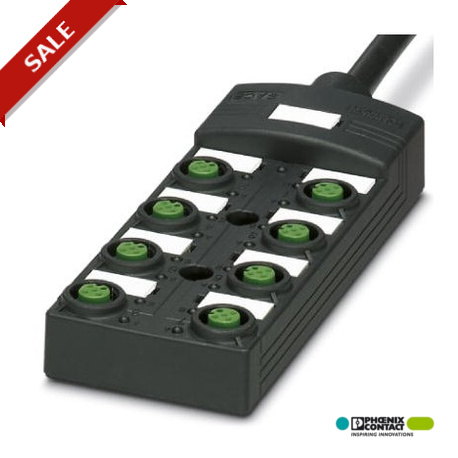

PHOENIX CONTACT SACB-8/16-5,0PUR SCO P SACB-8/16- 5,0PUR SCO P 1452547 PHOENIX CONTACT Sensor/actuator box, Application: Standard, Connection metho.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-8/16- 5,0PUR SCO P 1452547 PHOENIX CONTACT Sensor/actuator box, Application: Standard, Connection metho..

SACB-8/16-5,0PUR SCO P

1452547

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box, Application: Standard, Connection method: M12-SPEEDCON-socket Plastic, Number of slots: 8, Number of positions: 5, Coding: A - standard, Slot assignment: Double, Status indication: No, Universal; Master cable connection: Fixed connection 180°, PUR/PVC, Cable length: 5 m, Shielding: No Sensor/actuator box, application: Standard, connection type: SPEEDCON M12 female connector Plastic, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupation of plug-in stations: Double, status indication: No, Universal; Main cable connection: Fixed connection 180°, PUR/PVC, cable length: 5 m, shielding: no

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General

Rated voltage120 V
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions5
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12-SPEEDCON-socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 80 °C
-40 °C ... 90 °C (for fixed installation)
-5 °C ... 80 °C (for flexible installation)

Master cable connection data

Connection methodFixed connection
Length of cable5 m
Tightening torque slot sensor/actuator cable0.4 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialGold-plated
Contact carrier materialPA
Material of threaded sleevePBT
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = WH
1 / 2 (B) = GY/PK
2 / 4 (A) = GN
2 / 2 (B) = RD/BU
3 / 4 (A) = YE
3 / 2 (B) = WH/GN
4 / 4 (A) = GY
4 / 2 (B) = BN/GN
5 / 4 (A) = PK
5 / 2 (B) = WH/YE
6 / 4 (A) = RD
6 / 2 (B) = YE/BN
7 / 4 (A) = BK
7 / 2 (B) = WH/GY
8 / 4 (A) = VT
8 / 2 (B) = GY/BN
1-8 / 1 (+ 120 V) = BN
1-8 / 3 (0 V) = BU
1-8 / 5 (PE) = GN/YE

Cable

Cable typePUR/PVC black
Cable type (abbreviation)PUR
Cable abbreviationLiYY11Y-HF
UL AWM style20549 (80°C/300 V)
Conductor cross section16x 0.5 mm² (signal line)
3x 1 mm² (power line)
AWG signal line20
AWG power supply17
Conductor structure signal line28x 0.15 mm
Conductor structure, voltage supply56x 0.15 mm
Core diameter including insulation1.5 mm ±0.1 mm (signal line)
2.1 mm ±0.1 mm (power line)
Wire colorsBrown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown
Overall twistWires twisted in layers
External sheath, colorblack RAL 9005
Inner sheath thickness≥ 0.15 mm
Outer sheath thickness≥ 0.76 mm
External cable diameter D10.5 mm ±0.2 mm
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles1500000
Minimum bending radius, drag chain applications10 x D
Traversing path2 m
Traversing rate2 m/s
Cable weight183.7 kg/km
Outer sheath, materialPUR
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Nominal voltage, cable300 V
Test voltage, cable2000 V
Special propertiesSilicone-free
Flame resistanceaccording to DIN EN 50265
Resistance to oilAs per VDE 0472 Part 803
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

ETIM for 1452547 Sensors (EC002585)
Feature Name Feature Value
Length of the preassembled cable (EF007300) 5 m
Cable length configurable (EF007301) No
Number of sensor-/actuator-slots (EF006939) 8
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Rated voltage (EF000228) 120 V
Operating voltage (EF003983) 120 V
Max. current carrying capacity per socket (EF004038) 2 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Gold
Material insulation body (EF007543) Polyamide (PA)
With LED indication (EF005950) No
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) Yes
Fix cable version suitable for cable guide chain (EF007461) No
Housing colour (EF000136) Other
Operating temperature (EF002393) -25 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 54 mm
Height (EF000040) 23 mm
Depth (EF000049) 149 mm
