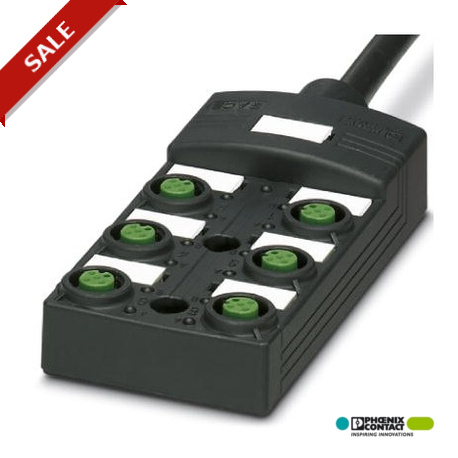

PHOENIX CONTACT SACB-6/12-L-10,0PUR SCO P SACB-6/12-L-10,0PUR SCO P 1452673 PHOENIX CONTACT Sensor/actuator box, Application: Standard, Connection met.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-6/12-L-10,0PUR SCO P 1452673 PHOENIX CONTACT Sensor/actuator box, Application: Standard, Connection met..

SACB-6/12-L-10,0PUR SCO P

1452673

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box, Application: Standard, Connection method: M12-SPEEDCON-socket Plastic, Number of slots: 6, Number of positions: 5, Coding: A - standard, Slot assignment: Double, Status indication: Yes, pnp; Master cable connection: Fixed connection 180°, PUR/PVC, Cable length: 10 m, Shielding: No Sensor/actuator box, application: Standard, connection type: SPEEDCON M12 female connector Plastic, number of plug-in stations: 6, number of poles: 5, coding: A - standard, occupancy of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: Fixed connection 180°, PUR/PVC, cable length: 10 m, shielding: no

Cables > Passive sensor-actuator interface (with cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current12 A
Number of positions5
Number of slots6
Sensor/actuator connection systemM12-SPEEDCON-socket

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 80 °C
-40 °C ... 90 °C (for fixed installation)
-5 °C ... 80 °C (for flexible installation)

Local diagnostics function

Local diagnosticsSupply voltage Green LED
Status display I/O Yellow LED

Master cable connection data

Connection methodFixed connection
Length of cable10 m
Tightening torque slot sensor/actuator cable0.4 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialGold-plated
Contact carrier materialPA
Material of threaded sleevePBT
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = WH
1 / 2 (B) = GY/PK
2 / 4 (A) = GN
2 / 2 (B) = RD/BU
3 / 4 (A) = YE
3 / 2 (B) = WH/GN
4 / 4 (A) = GY
4 / 2 (B) = BN/GN
5 / 4 (A) = PK
5 / 2 (B) = WH/YE
6 / 4 (A) = RD
6 / 2 (B) = YE/BN
1-4 / 1 (+ 24 V) = BN
1-6 / 3 (0 V) = BU
1-6 / 5 (PE) = GN/YE

Cable

Cable typePUR/PVC black
Cable type (abbreviation)PUR
Cable abbreviationLiYY11Y-HF
UL AWM style20549
Conductor cross section12x 0.5 mm² (signal line)
3x 1 mm² (power line)
AWG signal line20
AWG power supply17
Conductor structure signal line28x 0.15 mm
Conductor structure, voltage supply56x 0.15 mm
Core diameter including insulation1.5 mm ±0.1 mm (signal line)
2.1 mm ±0.1 mm (power line)
Thickness, insulation≥ 0.15 mm (Inner sheath)
≥ 0.76 mm (Outer cable sheath)
Overall twistWires twisted in layers
External sheath, colorblack RAL 9005
External cable diameter D9.4 mm ±0.2 mm
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation10 x D
Number of bending cycles1500000
Bending radius94 mm
Traversing path2 m
Traversing rate2 m/s
Cable weight150.9 kg/km
Outer sheath, materialPUR
Material, inner sheathPVC
Material conductor insulationPVC
Conductor materialBare Cu litz wires
Nominal voltage, cable300 V
Test voltage, cable2000 V
Special propertiesSilicone-free
Flame resistanceDIN EN 50265
Resistance to oilAs per VDE 0472 Part 803
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-5 °C ... 80 °C (cable, flexible installation)

ETIM for 1452673 Sensors (EC002585)
Feature Name Feature Value
Length of the preassembled cable (EF007300) 10 m
Cable length configurable (EF007301) No
Number of sensor-/actuator-slots (EF006939) 6
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Rated voltage (EF000228) 24 V
Operating voltage (EF003983) 24 V
Max. current carrying capacity per socket (EF004038) 2 A
Max. total current (EF004039) 12 A
Material of contact surface (EF004020) Gold
Material insulation body (EF007543) Polyamide (PA)
With LED indication (EF005950) Yes
With potential separation (EF003272) No
Connection for NPN-sensors (EF006817) No
Fix cable version suitable for cable guide chain (EF007461) No
Housing colour (EF000136) Other
Operating temperature (EF002393) -25 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 54 mm
Height (EF000040) 23 mm
Depth (EF000049) 123 mm
