View larger
Images are for illustrative purposes only. Please refer to data sheet for details

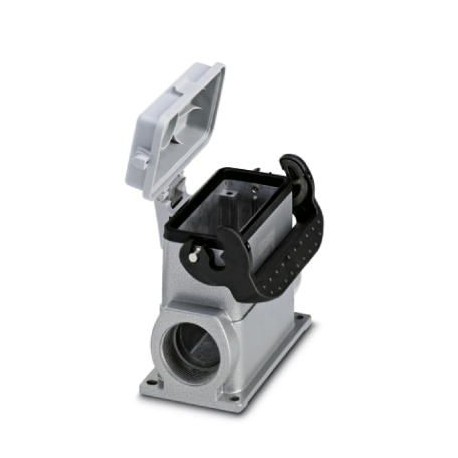

HC-B 24-SMLD-84/O2PG29 1678033 PHOENIX CONTACT Housing
HC-B 24-SMLD-84/O2PG29
1678033
PHOENIX CONTACT
5 Pcs.
Housing
Plinth housing, with longitudinal flange, height 84 mm, without cable gland, 2x Pg29, with protective cover
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1678033 |
|---|---|
| Packing unit | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 530 (C-4-2013) |
| GTIN | 4017918151621 |
| Weight per Piece (excluding packing) | 555.340 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 (When plugged in) |
|---|---|
| IP54 (with closed protective cover) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | B24 |
|---|---|
| Housing type | Box mounting bases |
| Locking type | with single locking latch |
| No. of cable outlets | 2 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 2x Pg29 |
| Protective cover | yes |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
| Material, protective cover | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
