View larger
Images are for illustrative purposes only. Please refer to data sheet for details

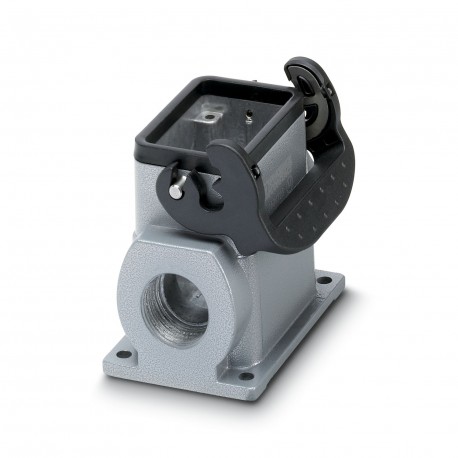

HC-B 6-SML-52/O2PG16 1675230 PHOENIX CONTACT Housing
HC-B 6-SML-52/O2PG16
1675230
PHOENIX CONTACT
10 Pcs.
Housing
Plinth housing, with longitudinal flange, height 52 mm, without cable gland, 2x Pg16
Box mounting base, with single locking latch, height 52 mm, without screw connection, 2x Pg16
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B6, BB10, DD24, M |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B6 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x Pg16 |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Dimensional drawing |  |
| Width | 52 mm |
| Height | 52 mm |
| Length | 84 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 2x Pg16 |
| Locking type | Latch |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
