View larger
Images are for illustrative purposes only. Please refer to data sheet for details

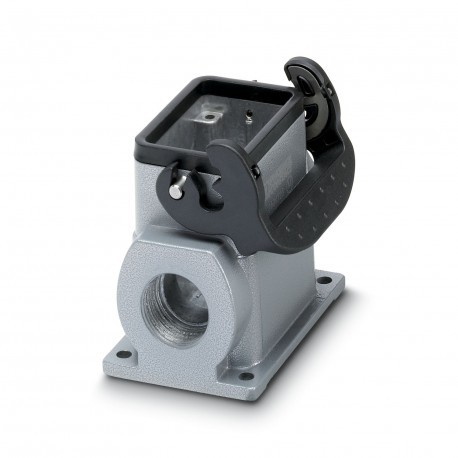

HC-B 6-SML-74/O2M32 1646858 PHOENIX CONTACT Housing
HC-B 6-SML-74/O2M32
1646858
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B 6 plinth housing, with longitudinal flange. Height 74 mm, with tubing 2 x M32
HEAVYCON box mounting base B6, with single locking latch. Height 74 mm, with supports 2x M32
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B6, BB10, DD24, M Tall housings for extra large wiring space |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B6 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M32 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 74 mm |
| Length | 84 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 2x M32 |
| Locking type | Latch |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
