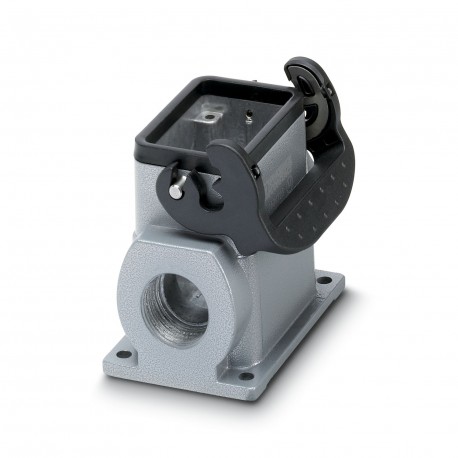

PHOENIX CONTACT HC-B 6-SML-52/O2M20 HC-B 6-SML-52/O2M20 1604723 PHOENIX CONTACT Housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 6-SML-52/O2M20 1604723 PHOENIX CONTACT Housing

HC-B 6-SML-52/O2M20

1604723

PHOENIX CONTACT

10 Pcs.

Housing HEAVYCON B6 plinth housing, with longitudinal flange. Height 52 mm, with 2 x M20 tubing HEAVYCON box mounting base B6, with single locking latch. Height 52 mm, with supports 2xM20

Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFor contact inserts HC-B6, BB10, DD24, M
Product properties
Product typeHousing with locking latch
Housing typeSurface mounting housing
ApplicationStandard
TypeB6
No. of cable outlets2
Type of the screw connection2x M20
Shieldedno
Cable outletlateral
Pg screw connectionnone
Dimensions
Dimensional drawingdodbtrfuvx.jpg
Width52 mm
Height52 mm
Length84 mm
Material specifications
Seal materialNBR
Housing materialDie-cast aluminum
Housing surface materialPowder-coated, gray
Locking latch materialStainless steel, handle: PA
Mechanical properties
Mechanical data
Type of the screw connection2x M20
Locking typeLatch
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
Ambient temperature (operation)-40 °C ... 125 °C
