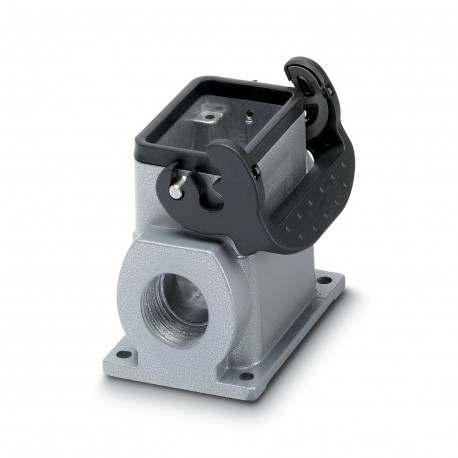

HC-B 6-SML-52/O1M25 1604722 PHOENIX CONTACT Housing

Name: HC-B 6-SML-52/O1M25 1604722 PHOENIX CONTACT Housing
Brand: PHOENIX CONTACT
SKU: 1604722

Reference: HC-B 6-SML-52/O1M25

Code: 1604722

Manufacturer: PHOENIX CONTACT

Units per package: 10 Pcs.

Description:

Housing HEAVYCON B6 plinth housing, with longitudinal flange. Height 52 mm, with tubing 1 x M25

Categories:
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

More info

▲

Orderkey	1604722
Packing unit	10 pc
Catalog page	Page 488 (C-4-2013)
GTIN	4017918882396
Weight per Piece (excluding packing)	205.920 g
Custom tariff number	85389099
Country of origin	DE (Germany)

Degree of protection of housing (IP)	IP65
Ambient temperature (operation)	-40 °C ... 125 °C

Note	For contact inserts HC-B6, BB10, DD24, M
Size	B6
Housing type	Box mounting bases
Locking type	with single locking latch
No. of cable outlets	1
Cable outlet	left (view of the opened single locking latch)
Screw connection	none
Type of the screw connection	1x M25
Housing material	Aluminum die-cast
Housing surface material	Powder-coated, gray
Seal material	NBR
Material lock	Stainless steel, handle: PA
Material grip body interlock	PA
