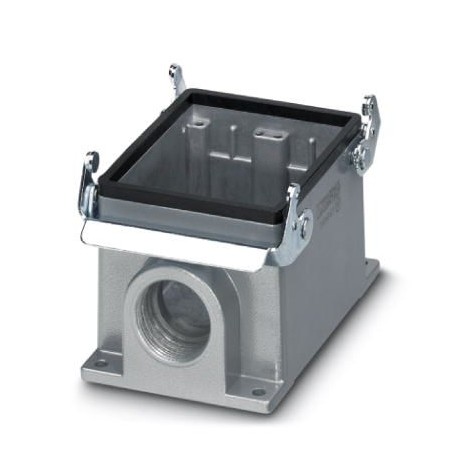

HC-B 32-SMQ-72/O1M32 1604867 PHOENIX CONTACT Housing
HC-B 32-SMQ-72/O1M32
1604867
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B32 plinth housing, with cross flange, height 72 mm, with tubing 1 x M32
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1604867 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 634 (C-2-2017) |
| GTIN | 4017918882815 |
| Weight per Piece (excluding packing) | 562.030 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Note | For contact inserts HC-B32, DD144, M |
|---|---|
| Size | B32 |
| Housing type | Box mounting bases |
| Color | gray |
| Locking type | with double locking latch |
| No. of cable outlets | 1 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 1x M32 |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material lock | Steel, galvanized |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
