View larger
Images are for illustrative purposes only. Please refer to data sheet for details

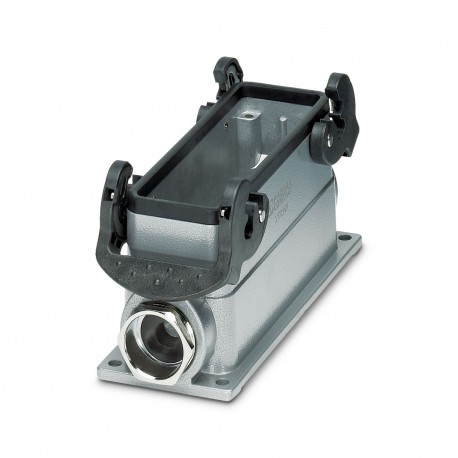

HC-B 24-SMQ-67/M2M25 1586989 PHOENIX CONTACT Housing
HC-B 24-SMQ-67/M2M25
1586989
PHOENIX CONTACT
1 Pcs.
Housing
Skirting housing, with cross flange, height 67 mm, with cable gland, 2x M25
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1586989 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 581 (PC-2011) |
| GTIN | 4046356427074 |
| Weight per Piece (excluding packing) | 500.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 67 mm |
|---|---|
| Width | 57 mm |
| Length | 144 mm |
| Wrench size, union nut | 25 mm |
| External cable diameter | 9 mm ... 18 mm (Cable 1) |
| 9 mm ... 18 mm (Cable 2) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
|---|---|
| Size | B24 |
| Housing type | Box mounting bases |
| Locking type | with double locking latch |
| No. of cable outlets | 2 |
| Cable outlet | lateral |
| Screw connection | with |
| Type of the screw connection | 2x M25 |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Cable gland material | Nickel-plated brass |
| Cable seal material | NBR |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
