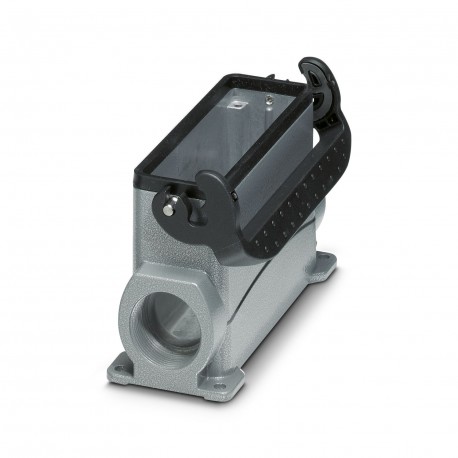

HC-B 24-SML-84/O1M32 1645752 PHOENIX CONTACT Housing
HC-B 24-SML-84/O1M32
1645752
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B24 plinth housing, with longitudinal flange, height 84 mm, with 1x M32 tubing
HEAVYCON box mounting base B24, with single locking latch, height 84 mm, with support 1x M32
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B24, BB46, D64, DD108, M |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Shielded | no |
| Cable outlet | left (view of the opened single locking latch) |
| Pg screw connection | none |
Dimensions
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 84 mm |
| Length | 144 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 1x M32 |
| Locking type | Latch |
Mounting
| Assembly note | For half and full screw connections |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
