View larger
Images are for illustrative purposes only. Please refer to data sheet for details

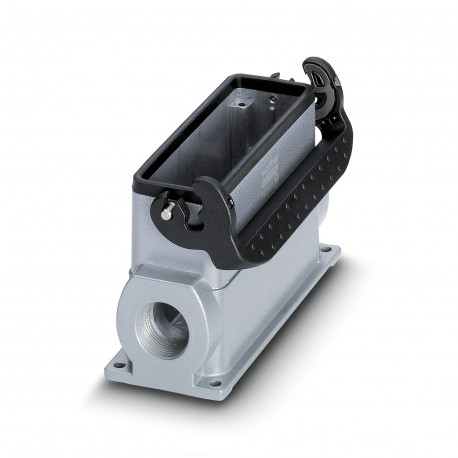

HC-B 24-SML-68/O1M25 1646337 PHOENIX CONTACT Housing
HC-B 24-SML-68/O1M25
1646337
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B24 plinth housing, with longitudinal flange, height 68 mm, with 1x M25 tubing
HEAVYCON box mounting base B24, with single locking latch, height 68 mm, with support 1x M25
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B24, BB46, D64, DD108, M |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Shielded | no |
| Cable outlet | left (view of the opened single locking latch) |
| Pg screw connection | none |
Dimensions
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 68 mm |
| Length | 144 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Locking type | Latch |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
