View larger
Images are for illustrative purposes only. Please refer to data sheet for details

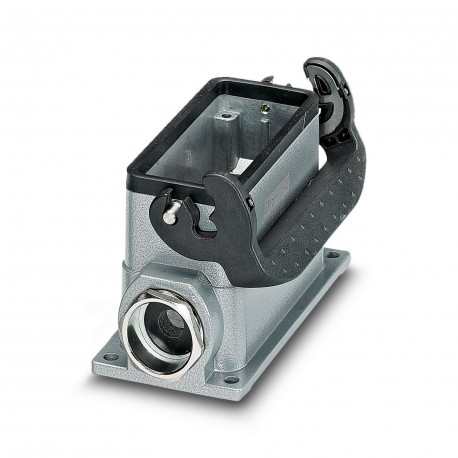

HC-B 16-SML-67/M2M25 1586866 PHOENIX CONTACT Housing
HC-B 16-SML-67/M2M25
1586866
PHOENIX CONTACT
10 Pcs.
Housing
Skirting housing, with longitudinal flange, height 67 mm, with cable gland, 2x M25
Box mounting base, with single locking latch, height 67 mm, with screw connection, 2x M25
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B16 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M25 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | with |
Dimensions
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 67 mm |
| Length | 117 mm |
| Wrench size, union nut | 25 mm |
Material specifications
| Material Screw connection | Brass, nickel-plated |
| Seal material Cable seal | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 2x M25 |
| Locking type | Latch |
Cable/line
| External cable diameter Cable 1 | 9 mm ... 18 mm (Cable 1) |
| External cable diameter Cable 2 | 9 mm ... 18 mm (Cable 2) |
Connection data
| External cable diameter | 9 mm ... 18 mm (Cable 1) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
