View larger
Images are for illustrative purposes only. Please refer to data sheet for details

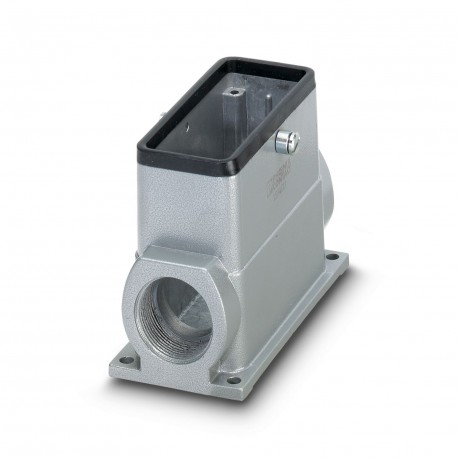

HC-B 16-SFZ-84/O1M32 1584619 PHOENIX CONTACT Housing
HC-B 16-SFZ-84/O1M32
1584619
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B16 plinth housing, for central flange, height 84 mm, with 1x M32 tubing
HEAVYCON box mounting base B16, for main latch, height 84 mm, with support 1xM32
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B16 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Cable outlet | lateral |
Dimensions
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 84 mm |
| Length | 117 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 1x M32 |
Mounting
| Assembly note | For half and full screw connections |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
