View larger
Images are for illustrative purposes only. Please refer to data sheet for details

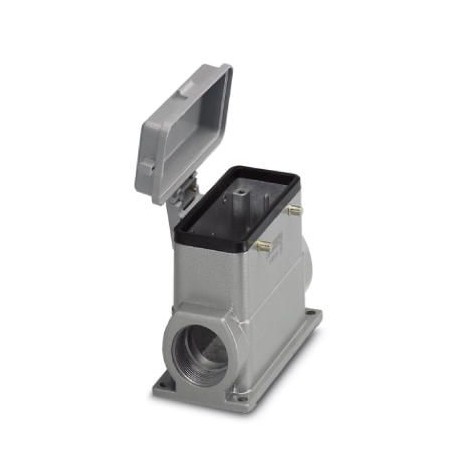

HC-B 16-SFQD-84/O2M32 1645668 PHOENIX CONTACT Housing
HC-B 16-SFQD-84/O2M32
1645668
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B16 plinth housing, for cross flange, height of 84 mm, with 2x M32 tubing, with cover
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1645668 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 520 (C-4-2013) |
| GTIN | 4017918957902 |
| Weight per Piece (excluding packing) | 434.130 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection of housing (IP) | IP65 (When plugged in) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
|---|---|
| Size | B16 |
| Housing type | Box mounting bases |
| Locking type | for double locking latch |
| No. of cable outlets | 2 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 2x M32 |
| Protective cover | yes |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material, protective cover | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
