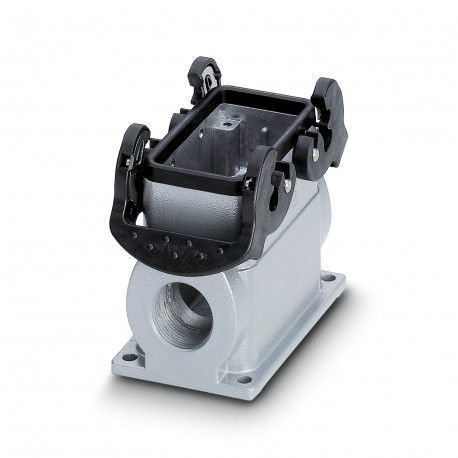

HC-B 10-SMQ-74/O1M32 1604756 PHOENIX CONTACT Housing
HC-B 10-SMQ-74/O1M32
1604756
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B10 plinth housing, with cross flange, height 74 mm, with tubing 1 x M32
HEAVYCON box mounting base B10, with double locking latch, height 74 mm, with support 1xM32
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Dimensional drawing |  |
| Width | 57 mm |
| Height | 74 mm |
| Length | 93 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 1x M32 |
| Locking type | Latch |
Mounting
| Assembly note | For half and full screw connections |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
