View larger
Images are for illustrative purposes only. Please refer to data sheet for details

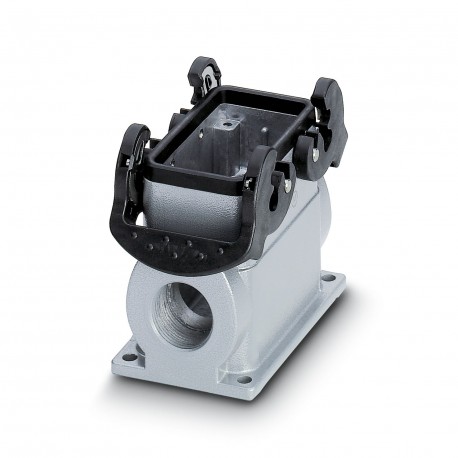

HC-B 10-SMQ-52/O2M20 1604753 PHOENIX CONTACT Housing
HC-B 10-SMQ-52/O2M20
1604753
PHOENIX CONTACT
10 Pcs.
Housing
HEAVYCON B10 plinth housing, with cross flange, height 52 mm, with 2 x M20 tubing
HEAVYCON box mounting base B10, with double locking latch, height 52 mm, with supports 2xM20
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M20 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Dimensional drawing |  |
| Width | 52 mm |
| Height | 52 mm |
| Length | 93 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 2x M20 |
| Locking type | Latch |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
