View larger
Images are for illustrative purposes only. Please refer to data sheet for details

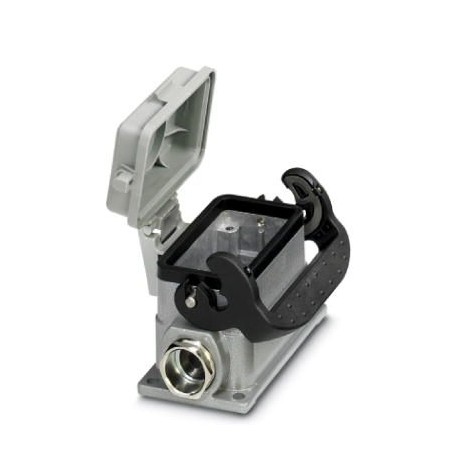

HC-B 10-SMLD-52/M1M20 1586798 PHOENIX CONTACT Housing
HC-B 10-SMLD-52/M1M20
1586798
PHOENIX CONTACT
10 Pcs.
Housing
Plinth housing, with longitudinal flange, height 52 mm, with cable gland, 1x M20, with protective cover
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1586798 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 572 (PC-2011) |
| GTIN | 4046356426886 |
| Weight per Piece (excluding packing) | 277.840 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 52 mm |
|---|---|
| Width | 52 mm |
| Length | 93 mm |
| Wrench size, union nut | 20 mm |
| External cable diameter | 5 mm ... 12 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 (When plugged in) |
|---|---|
| IP54 (with closed protective cover) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | B10 |
|---|---|
| Housing type | Box mounting bases |
| Locking type | with single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | left (view of the opened single locking latch) |
| Screw connection | with |
| Type of the screw connection | 1x M20 |
| Protective cover | yes |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Cable gland material | Nickel-plated brass |
| Cable seal material | NBR |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
| Material, protective cover | PA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
