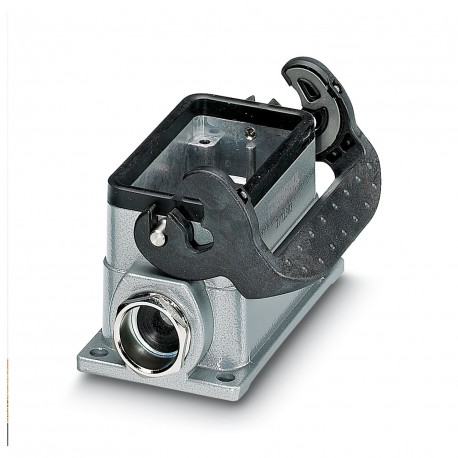

HC-B 10-SML-52/M1M20 1586772 PHOENIX CONTACT Housing
HC-B 10-SML-52/M1M20
1586772
PHOENIX CONTACT
10 Pcs.
Housing
Skirting housing, with longitudinal flange, height 52 mm, with cable gland, 1x M20
Box mounting base, with single locking latch, height 52 mm, with screw connection, 1x M20
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M20 |
| Shielded | no |
| Cable outlet | left (view of the opened single locking latch) |
| Pg screw connection | with |
Dimensions
| Dimensional drawing |  |
| Width | 52 mm |
| Height | 52 mm |
| Length | 93 mm |
| Wrench size, union nut | 20 mm |
Material specifications
| Material Screw connection | Brass, nickel-plated |
| Seal material Cable seal | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
Mechanical properties
| Mechanical data | |
| Type of the screw connection | 1x M20 |
| Locking type | Latch |
Cable/line
| External cable diameter Cable 1 | 5 mm ... 12 mm |
Connection data
| External cable diameter | 5 mm ... 12 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
