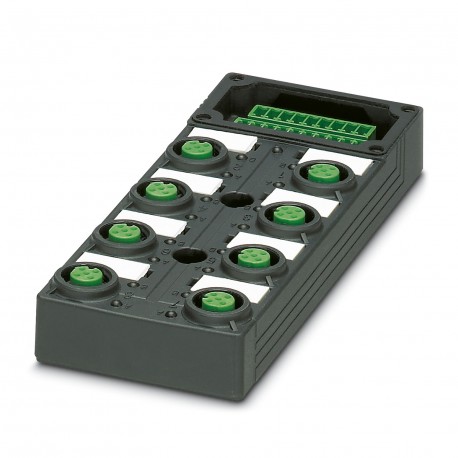

SACB-8/16-L-C GG SCO P 1452916 PHOENIX CONTACT Sensor/actuator box header, Application: Standard, Connection..
SACB-8/16-L-C GG SCO P
1452916
PHOENIX CONTACT
1 Pcs.
Sensor/actuator box header, Application: Standard, Connection method: M12-SPEEDCON-socket Plastic, Number of slots: 8, Number of positions: 5, Coding: A - standard, Slot assignment: Double, Status indication: Yes, pnp; Master cable connection: Pluggable screw connection, Shielding: No
Sensor/actuator box, base housing, application: Standard, connection type: SPEEDCON M12 female connector Plastic, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupation of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: Plug-in screw connection, shielding: No
Distributor box header, application: Standard, connection method: M12-SPEEDCON-socket Plastic, number of slots: 8, number of positions: 5, coding: A, slot assignment: Double, status display: Yes, PNP; master cable connection: Pluggable screw connection, shielding: no
Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | NOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Note on application | Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
Product properties
| Product type | Header with metric measurement slots |
| Application | Standard |
| Number of positions | 5 |
| Number of slots | 8 |
| Coding | A |
| LED | yes |
System properties
| Local diagnostics | |
| Monitored function | Supply voltage |
| Optical representation | Green LED |
Electrical properties
| Max. operating voltage Umax | 30 V DC |
| Local diagnostics | Supply voltage Green LED |
| Status display I/O Yellow LED | |
| Nominal voltage UN | 24 V DC |
| Rated current, total | 10 A |
| Max. current carrying capacity per path | 2 A |
| Current carrying capacity per slot | 4 A |
Signaling
| Status display present | Yes |
Dimensions
| Dimensional drawing |  |
| Width | 54 mm |
| Height | 19 mm |
| Length | 149 mm |
Material specifications
| Material Threaded sleeve | PBT |
| Material Housing | PBT |
| Material Molding compound | PUR |
| Flammability rating according to UL 94 | V0 |
| Seal material O-ring | NBR |
| Contact material | Cu alloy |
| Contact surface material | gold-plated |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of the contact carrier on the master cable side | PA |
| Material of contact surface, master cable side | Sn |
Cable/line
| Connection method | Pluggable screw connection |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| Ambient temperature (operation) | -25 °C ... 80 °C |
Standards and regulations
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Feature Name | Feature Value |
|---|---|
| Number of sensor-/actuator-slots (EF006939) | 8 |
| Number of channels per connector slot (EF006885) | 2 |
| Type of branches for sensor-/actuator cables (EF006972) | M12 |
| Number of poles sensor/actuator slots (EF007402) | 5 |
| Operating voltage (EF003983) | 24 V |
| Max. current carrying capacity per I/O signal (EF004037) | 10 A |
| Max. total current (EF004039) | 10 A |
| Material of contact surface (EF004020) | Other |
| With LED indication (EF005950) | Yes |
| With potential separation (EF003272) | No |
| Connection for NPN-sensors (EF006817) | No |
| Operating temperature (EF002393) | -25 °C |
| Degree of protection (IP) (EF005474) | IP65 |
| Explosion safety category for gas (EF003997) | Other |
| Explosion safety category for dust (EF003998) | Other |
| Width (EF000008) | 54 mm |
| Height (EF000040) | 19 mm |
