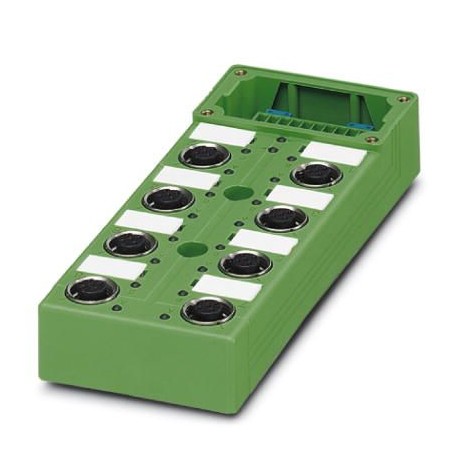

PHOENIX CONTACT SACB-8/16-L-C GG SCO SACB-8/16-L-C GG SCO 1516771 PHOENIX CONTACT Sensor/actuator box header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SACB-8/16-L-C GG SCO 1516771 PHOENIX CONTACT Sensor/actuator box header

SACB-8/16-L-C GG SCO

1516771

PHOENIX CONTACT

1 Pcs.

Sensor/actuator box header Sensor/actuator box, base housing, application: Standard, connection type: SPEEDCON M12 Metal female connector, number of plug-in stations: 8, number of poles: 5, coding: A - standard, occupation of plug-in stations: Double, status indication: Yes, pnp; Main cable connection: Plug-in screw connection, shielding: No

Cables > Passive sensor-actuator interface (without cable)
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1516771
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 271 (C-2-2017)
GTIN4017918967505
Weight per Piece (excluding packing)303.000 g
Custom tariff number85366990
Country of originPL (Poland)

General

Rated voltage24 V DC
Max. operating voltage Umax30 V DC
Current carrying capacity per I/O signal2 A
Current carrying capacity per slot4 A
Total rated current10 A
2x 8 A (For electrical isolation)
Number of positions5
Number of slots8
Flammability rating according to UL 94V0
Sensor/actuator connection systemM12-SPEEDCON-socket

Ambient conditions

Degree of protectionIP65
IP67
IP69K
Ambient temperature (operation)-30 °C ... 80 °C

Local diagnostics function

Local diagnosticsSupply voltage per module Green LED
Status display I/O Yellow LED

Master cable data/connection data

Connection methodPluggable screw connection
Tightening torque slot sensor/actuator cable0.4 Nm
Tightening torque of mounting screw for fixing the housing0.5 Nm

Insulation material

Housing materialPBT
Material of the moulding massPUR
Contact materialCu alloy
Contact surface materialgold-plated
Contact carrier materialPA
Material of contact, master cable sideCU alloy
Material of contact surface, master cable sideGold-plated
Material of the contact carrier on the master cable sidePA 6.6 V0
Material of threaded sleeveZinc die-cast
Material of threaded sleeve surfaceNickel-plated
O-ring materialNBR

Pin assignment

Slot/position = Wire color or connection1 / 4 (A) = 1 / 4
1 / 2 (B) = 1 / 2
2 / 4 (A) = 2 / 4
2 / 2 (B) = 2 / 2
3 / 4 (A) = 3 / 4
3 / 2 (B) = 3 / 2
4 / 4 (A) = 4 / 4
4 / 2 (B) = 4 / 2
5 / 4 (A) = 5 / 4
5 / 2 (B) = 5 / 2
6 / 4 (A) = 6 / 4
6 / 2 (B) = 6 / 2
7 / 4 (A) = 7 / 4
7 / 2 (B) = 7 / 2
8 / 4 (A) = 8 / 4
8 / 2 (B) = 8 / 2
1-8 / 1 (+ 24 V) = UN
1-8 / 3 (0 V) = 0 V
1-8 / 5 (PE) = PE

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Connection in acc. with standardCUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1516771 Sensors (EC003558)
Feature Name Feature Value
Number of sensor-/actuator-slots (EF006939) 8
Number of channels per connector slot (EF006885) 2
Type of branches for sensor-/actuator cables (EF006972) M12
Number of poles sensor/actuator slots (EF007402) 5
Operating voltage (EF003983) 24 V
Max. current carrying capacity per I/O signal (EF004037) 10 A
Max. total current (EF004039) 10 A
Material of contact surface (EF004020) Other
With LED indication (EF005950) Yes
With potential separation (EF003272) Yes
Connection for NPN-sensors (EF006817) No
Operating temperature (EF002393) -30 °C
Degree of protection (IP) (EF005474) IP65
Explosion safety category for gas (EF003997) Other
Explosion safety category for dust (EF003998) Other
Width (EF000008) 58 mm
Height (EF000040) 26 mm
