RBO 10 BU 3244616 PHOENIX CONTACT Bolt connection terminal block

RBO 10 BU

3244616

PHOENIX CONTACT

5 Pcs.

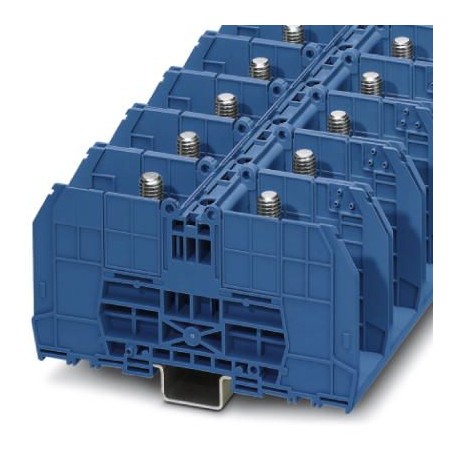

Bolt connection terminal block Stud connection terminal, nominal voltage: 1000 V, nominal current: 309 A, number of connections: 2, number of poles: 1, connection type: Stud connection, 1st floor, Dimensioning section: 150 mm², mounting class: NS 35/7.5, NS 35/15, color: blue

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3244616
Packing unit5 pc
Minimum order quantity5 pc
Catalog pagePage 543 (C-1-2017)
GTIN4046356724388
Weight per Piece (excluding packing)273.600 g
Custom tariff number85369010
Country of originCN (China)

General

Number of positions1
Number of levels1
Number of connections2
Potentials1
Nominal cross section150 mm²
Colorblue
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition9.55 W
Maximum load current309 A (with 150 mm² conductor cross section)
Nominal current IN309 A
Nominal voltage UN1000 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width41 mm
Length144 mm
Height NS 35/7,577 mm
Height NS 35/1584.5 mm
Pitch41 mm

Connection data

NoteConnection bolts
Connection methodBolt connection
Screw threadM10
Tightening torque, min10 Nm
Tightening torque max20 Nm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section flexible min.6 mm²
Conductor cross section flexible max.150 mm²
Min. AWG conductor cross section, flexible10
Max. AWG conductor cross section, flexible300
Conductor cross section flexible, with ferrule with plastic sleeve min.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.150 mm²
Cable lug connection according to standardDIN 46234
Min. cross section for cable lug connection6 mm²
Max. cross section for cable lug connection150 mm²
Hole diameter, min.10.5 mm
Cable lug width, max.30 mm
Bolt diameter10 mm
Screw threadM10
Tightening torque, min10 Nm
Tightening torque max20 Nm
Cable lug connection according to standardDIN 46235
Min. cross section for cable lug connection16 mm²
Max. cross section for cable lug connection150 mm²
Hole diameter, min.10.5 mm
Cable lug width, max.34 mm
Bolt diameter10 mm
Screw threadM10
Tightening torque, min10 Nm
Tightening torque max20 Nm
Cable lug connection according to standardDIN 46237
Min. cross section for cable lug connection6 mm²
Max. cross section for cable lug connection6 mm²
Hole diameter, min.10.5 mm
Cable lug width, max.18 mm
Bolt diameter10 mm
Screw threadM10
Tightening torque, min10 Nm
Tightening torque max20 Nm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3244616 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 309 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Bolt connection
Type of electrical connection 2 (EF002527) Bolt connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 41 mm
Height (EF000040) 144 mm
Depth (EF000049) 77 mm
Closing plate required (EF002525) No
Colour (EF000007) Blue
Internally connected stages (EF002661) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
